Experience commanding power with the DMX CONSOLE-1024 MICRO with new compact design & a sibling of DMX CONTROLLER 1024 Managing up to 1024 channels across 96 fixtures, this console is ideal for large scale events and professional lighting setups with ease to use in small working space. Craft dynamic lighting scenes with ease, thanks to its versatile control options and precise programming capabilities. With robust construction and seamless DMX connectivity,this console is the go-to choice for lighting designers, programmers, and rental companies alike.

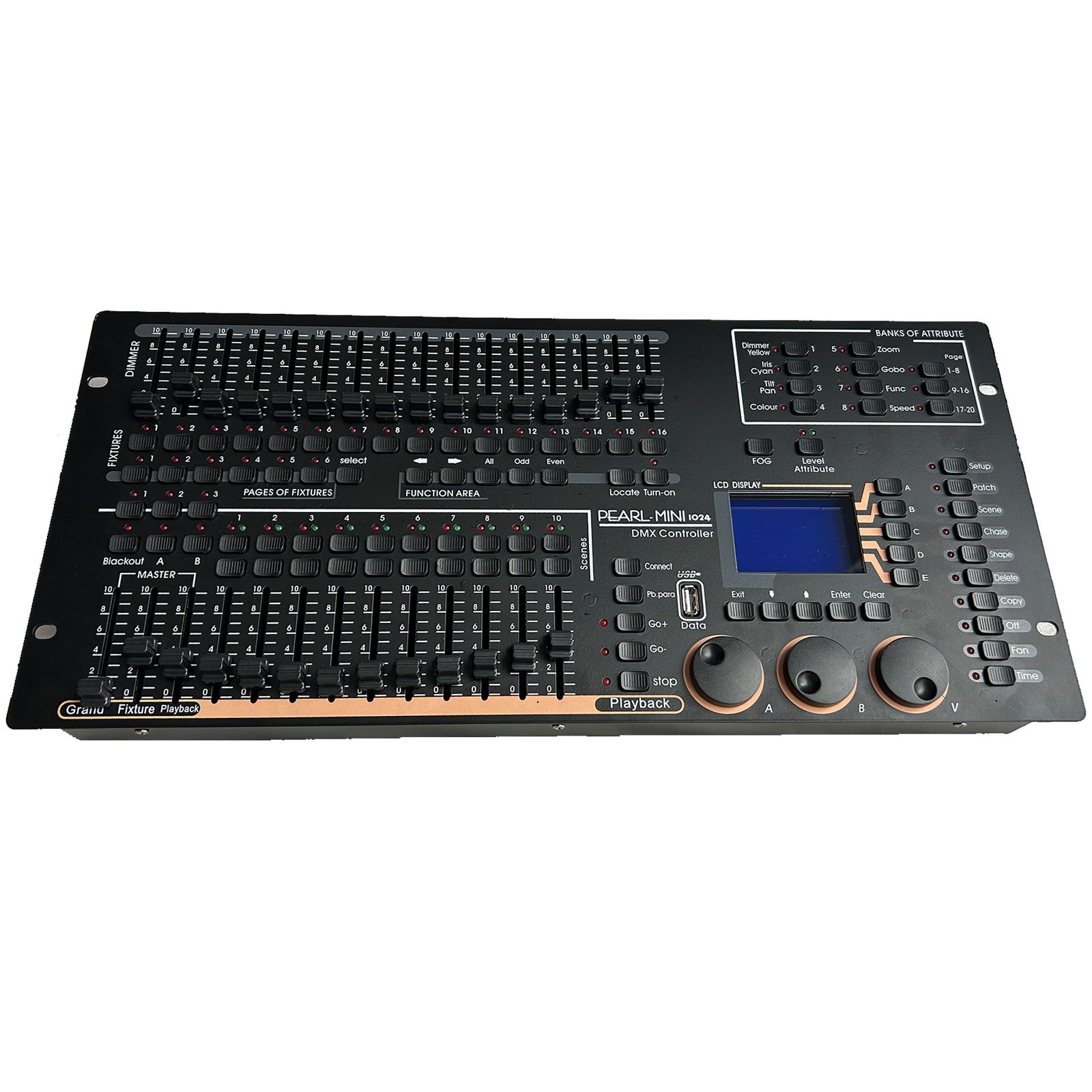

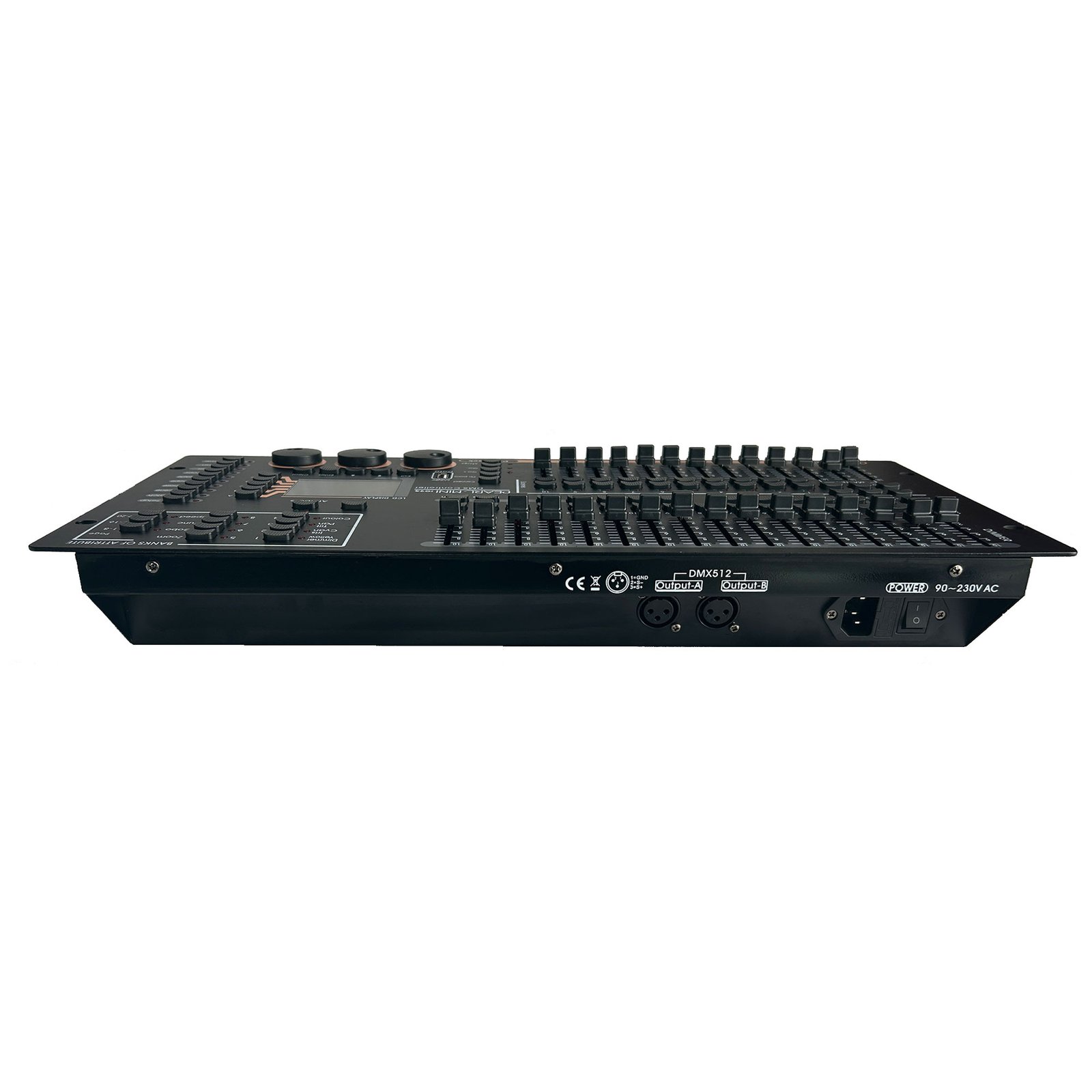

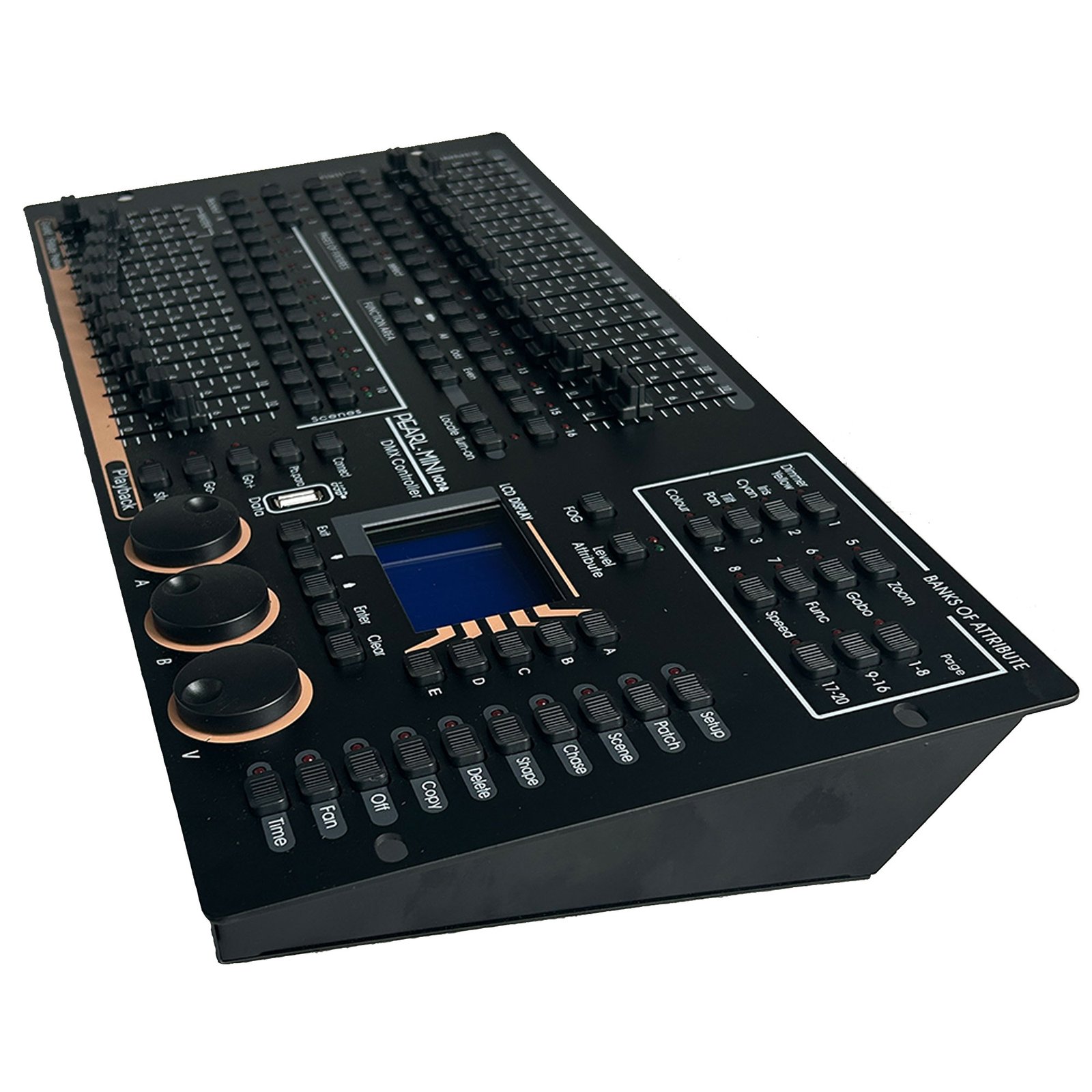

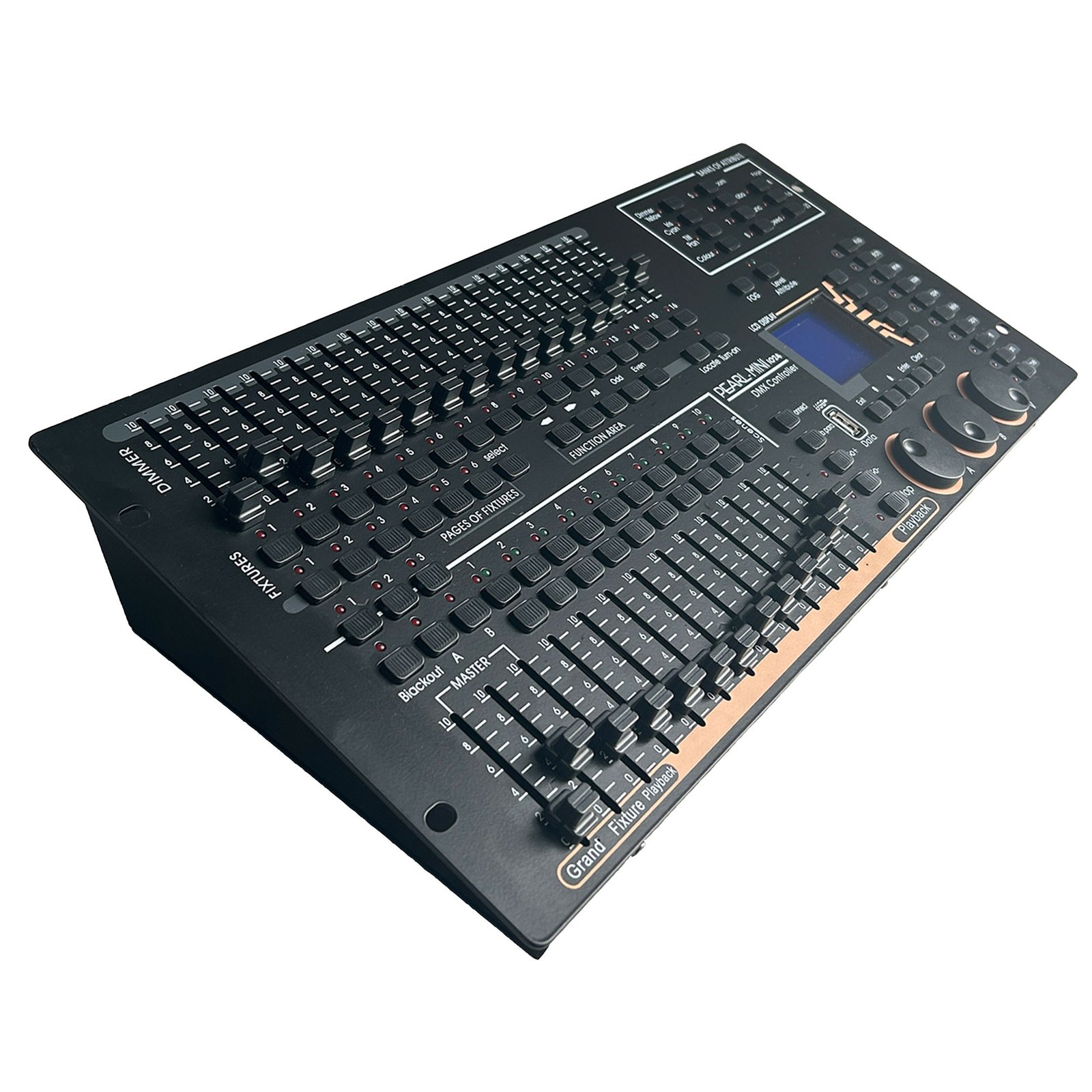

DMX CONTROLLER 1024 MICRO
Experience commanding power with the DMX CONSOLE-1024 MICRO with new compact design & a sibling of DMX CONTROLLER 1024 Managing up to 1024 channels across 96 fixtures, this console is ideal for large scale events and professional lighting setups with ease to use in small working space. Craft dynamic lighting scenes with ease, thanks to its versatile control options and precise programming capabilities. With robust construction and seamless DMX connectivity,this console is the go-to choice for lighting designers, programmers, and rental companies alike.
Description
Additional information
| Power |
AC 100-240V / 50-60Hz. |
|---|---|
| DMX Channels |
1024 |
| Mating number of fixtures |
96 |
| Control channels: |
Each Scanner 40 main channel + 40 trim |
| Fixture Library |
Avolite Pearl R20 library supported |
| The number of scenes that can be saved |
60 |
| The number of scenes that can run simultaneously |
10 |
| The total number of steps in a multi-step scenario |
600 |
| Scene time control |
Fade in, fade out, LTP Slope |
| Shapes for each scene |
5 |
| Scene and dimmer by slider |
Yes |
| Interlocked scene |
Yes |
| Button controlled scene |
Yes |
| Shape generator: |
Shapes of Dimmer, Pan/Tilt, RGB,CMY, Color, Gobo, Iris and Focus |
| Shapes to run simultaneously |
5 |
| Master slider |
Global, playback, fixture |
| U disk read |
Support FAT32 format |
| Product Dimension |
48.2 X 44 X 15.5 CM |
| Gross Weight |
8 KG |
| Flight case Packing (1 in 1 ) Package: |
53X27X15 CM |
| Power |
AC 100-240V / 50-60Hz. |
|---|---|
| DMX Channels |
1024 |
| Mating number of fixtures |
96 |
| Control channels: |
Each Scanner 40 main channel + 40 trim |
| Fixture Library |
Avolite Pearl R20 library supported |
| The number of scenes that can be saved |
60 |
| The number of scenes that can run simultaneously |
10 |
| The total number of steps in a multi-step scenario |
600 |
| Scene time control |
Fade in, fade out, LTP Slope |
| Shapes for each scene |
5 |
| Scene and dimmer by slider |
Yes |
| Interlocked scene |
Yes |
| Button controlled scene |
Yes |
| Shape generator: |
Shapes of Dimmer, Pan/Tilt, RGB,CMY, Color, Gobo, Iris and Focus |
| Shapes to run simultaneously |
5 |
| Master slider |
Global, playback, fixture |
| U disk read |
Support FAT32 format |
| Product Dimension |
48.2 X 44 X 15.5 CM |
| Gross Weight |
8 KG |
| Flight case Packing (1 in 1 ) Package: |
53X27X15 CM |
