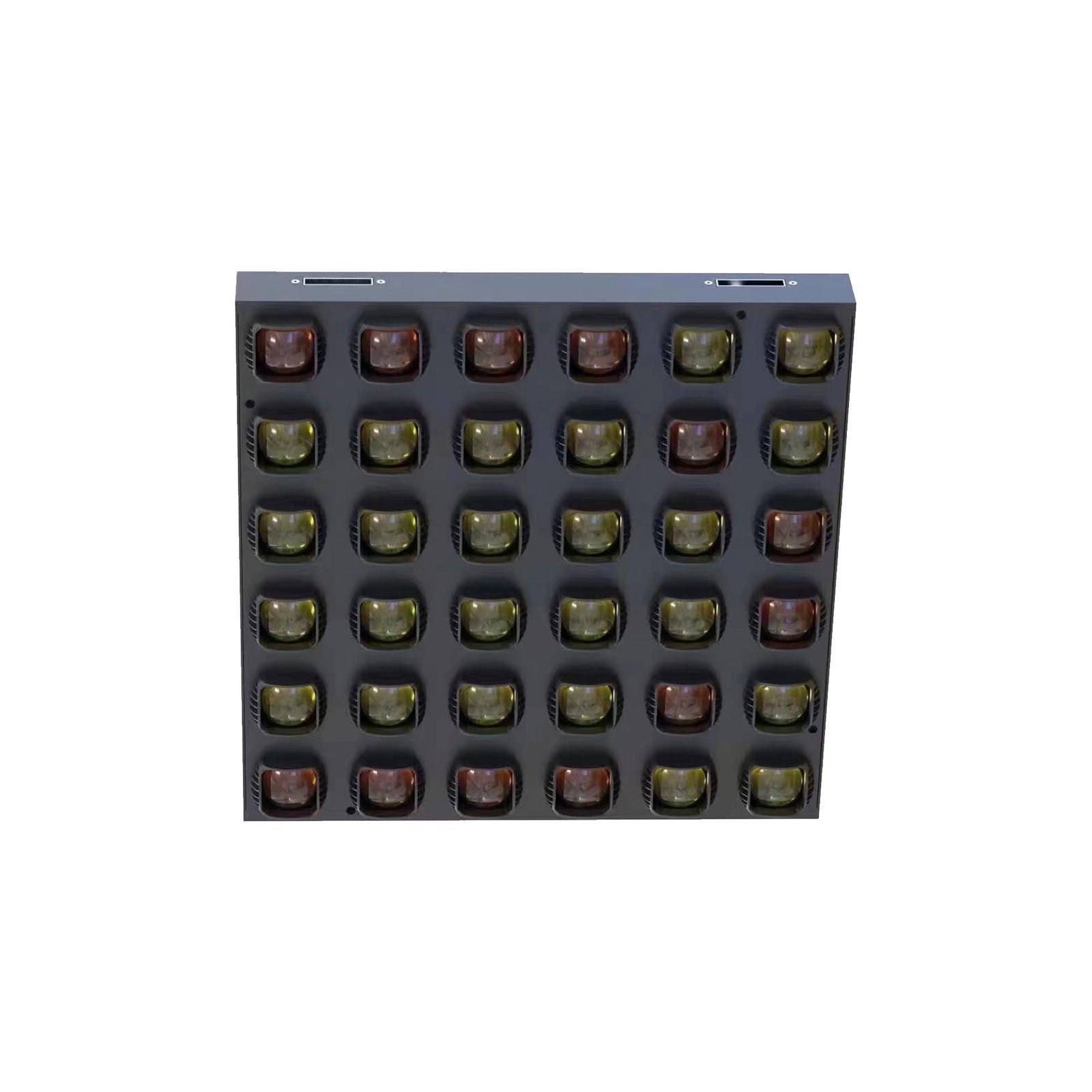

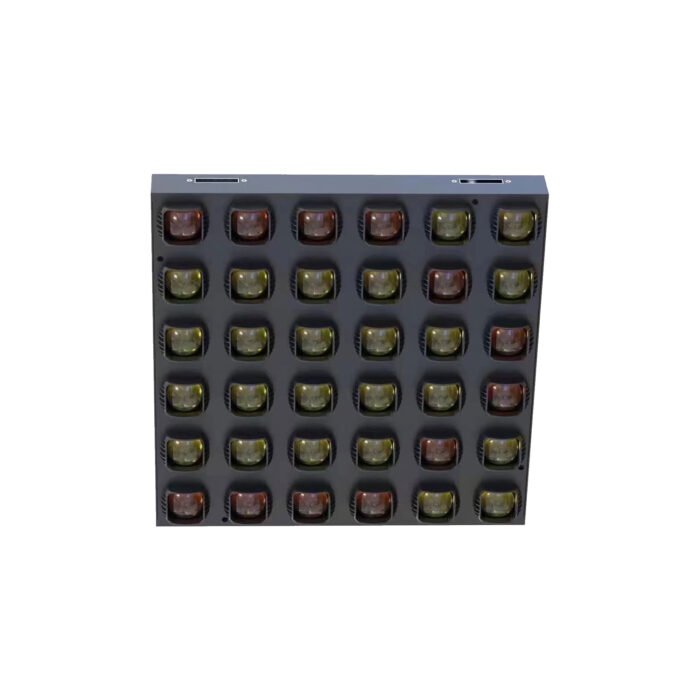

DOT MATRIX 540 – High-Intensity Pixel Panel Redefined DOT MATRIX 540 is the next-generation LED pixel panel engineered for creative professionals who demand performance and control. Featuring 36 x 15W RGBW LEDs housed in a 500x500mm panel, it delivers a total output of 540W through 2° ultra-narrow beams, perfect for dynamic visuals, punchy chases, and high-impact installations. Its large-format square lenses enhance brightness and sharpness, while full pixel control allows custom mapping and advanced effect programming. Sealed housing design protects against dust and moisture, extending its lifetime and reducing maintenance.
DOT MATRIX 540
DOT MATRIX 540 – High-Intensity Pixel Panel Redefined DOT MATRIX 540 is the next-generation LED pixel panel engineered for creative professionals who demand performance and control. Featuring 36 x 15W RGBW LEDs housed in a 500x500mm panel, it delivers a total output of 540W through 2° ultra-narrow beams, perfect for dynamic visuals, punchy chases, and high-impact installations. Its large-format square lenses enhance brightness and sharpness, while full pixel control allows custom mapping and advanced effect programming. Sealed housing design protects against dust and moisture, extending its lifetime and reducing maintenance.
Description
Additional information
| Voltage |
AC100~240V 50/60HZ |
|---|---|
| Power |
500W |
| Light source |
36 X 15W RGBW LEDs |
| Control mode |
DMX512, With RDM function. |
| Channels |
04/12/144 CH |
| Dimming |
32bit 0~100% linear dimming |
| Connection mode |
DMX512 input/output/power input/output. |
| Product dimensions |
50 x 50 x 20 CM |
| Net weight |
10 KG |
| Gross weight |
51 KG |
| Flight case packaging (4 in 1) |
83 x 54 x 63 CM |
| IP Rating |
IP20 |
Download Drivers
Share On
Share On
Share On
| Voltage |
AC100~240V 50/60HZ |
|---|---|
| Power |
500W |
| Light source |
36 X 15W RGBW LEDs |
| Control mode |
DMX512, With RDM function. |
| Channels |
04/12/144 CH |
| Dimming |
32bit 0~100% linear dimming |
| Connection mode |
DMX512 input/output/power input/output. |
| Product dimensions |
50 x 50 x 20 CM |
| Net weight |
10 KG |
| Gross weight |
51 KG |
| Flight case packaging (4 in 1) |
83 x 54 x 63 CM |
| IP Rating |
IP20 |
Discription
DOT MATRIX 540 – High-Intensity Pixel Panel Redefined DOT MATRIX 540 is the next-generation LED pixel panel engineered for creative professionals who demand performance and control. Featuring 36 x 15W RGBW LEDs housed in a 500x500mm panel, it delivers a total output of 540W through 2° ultra-narrow beams, perfect for dynamic visuals, punchy chases, and high-impact installations. Its large-format square lenses enhance brightness and sharpness, while full pixel control allows custom mapping and advanced effect programming. Sealed housing design protects against dust and moisture, extending its lifetime and reducing maintenance.
Additional Information
| Voltage |
AC100~240V 50/60HZ |
|---|---|
| Power |
500W |
| Light source |
36 X 15W RGBW LEDs |
| Control mode |
DMX512, With RDM function. |
| Channels |
04/12/144 CH |
| Dimming |
32bit 0~100% linear dimming |
| Connection mode |
DMX512 input/output/power input/output. |
| Product dimensions |
50 x 50 x 20 CM |
| Net weight |
10 KG |
| Gross weight |
51 KG |
| Flight case packaging (4 in 1) |
83 x 54 x 63 CM |
| IP Rating |
IP20 |
