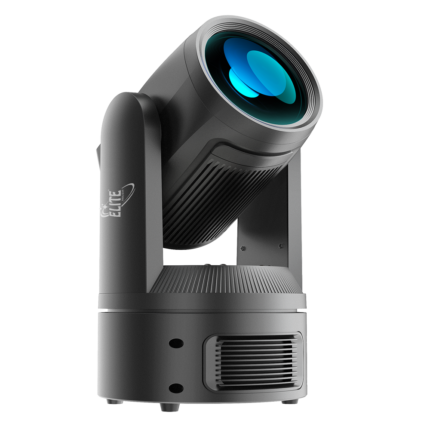

LED BEAM 180

Introducing the LED BEAM 180, a dynamic lighting fixture tailored to elevate entertainment experiences across a spectrum of venues, from vibrant bars to lively nightclubs, and everything in between.

Crafted with a suite of advanced features, the LED BEAM 180 is designed to seamlessly integrate into any lighting setup. With Remote Device Management (RDM) functionality and controllable address code adjustment, customization is effortless, ensuring optimal performance in diverse configurations. Its compact size and lightweight design make transportation and installation a breeze, providing convenience without compromise.

Driven by an energy-efficient LED light source, this fixture delivers exceptional light efficiency and boasts a long service life, prioritizing sustainability without sacrificing performance. The beam emitted is strong, sharp, and faster, ensuring captivating visual effects with a stable operating speed that enhances any atmosphere.

But innovation doesn’t end there. Our intelligent temperature-controlled bearing fan ensures whisper-quiet operation, minimizing disruptions and maximizing immersion in the entertainment experience.

From pulsating music restaurants to energetic KTV halls, the LED BEAM 180 is the perfect companion for creating unforgettable moments. Elevate your venue’s ambiance with this environmentally conscious yet powerful lighting solution, designed to leave a lasting impression on patrons and performers alike.

Description

Introducing the LED BEAM 180, a dynamic lighting fixture tailored to elevate entertainment experiences across a spectrum of venues, from vibrant bars to lively nightclubs, and everything in between.

Crafted with a suite of advanced features, the LED BEAM 180 is designed to seamlessly integrate into any lighting setup. With Remote Device Management (RDM) functionality and controllable address code adjustment, customization is effortless, ensuring optimal performance in diverse configurations. Its compact size and lightweight design make transportation and installation a breeze, providing convenience without compromise.

Driven by an energy-efficient LED light source, this fixture delivers exceptional light efficiency and boasts a long service life, prioritizing sustainability without sacrificing performance. The beam emitted is strong, sharp, and faster, ensuring captivating visual effects with a stable operating speed that enhances any atmosphere.

But innovation doesn’t end there. Our intelligent temperature-controlled bearing fan ensures whisper-quiet operation, minimizing disruptions and maximizing immersion in the entertainment experience.

From pulsating music restaurants to energetic KTV halls, the LED BEAM 180 is the perfect companion for creating unforgettable moments. Elevate your venue’s ambiance with this environmentally conscious yet powerful lighting solution, designed to leave a lasting impression on patrons and performers alike.

Additional information
Lamp type

180W LED

Lens

high-precision optical lens

Beam Angle

2-3 °

COLOR SYSTEM

7 colors + white light

GOBO SYSTEM

8 Fixed Gobos

MOVING PARAMETER

Angle: Pan 540", Tilt 270"
PAN and TILT adopt an electro-optic reset system Which automatically resets the parameters if any change is caused by accident.

EFFECT EQUIPMENT

Independent frost soft effect, Mechanical linear 0-100% dimming, Fast strobe, multiple strobe effects, (Pulse/asynchronous/synchronous/ slow-medium-fast at random) Prism: 6+12 Prisms.

CONTROL AND PROGRAMMING

Control channel: 10CH / 12CH
Control Mode: Standard DMX512 protocol, RDM (Optional), Auto Run, Sound
DMA interface: RJ45 network port, XLR port
Menu display: 16 million pixels LCD
The menu display can be rotated 180 degrees.

ELECTRONIC CONTROL TECHNOLOGY

Intelligent fan control
Electronic sensor detection
DMX control monitor
X/Y two-phase motor drive
Query by LCD screen

POWER SUPPLY

AC100-240V 50/60Hz
Consumption: 180W

PHYSICAL

Product dimensions: 19.5 x 19.5 x 35 CM
Net weight: 4.4KG
Gross weight: 22KG
Cardboard Packing (4 in 1): 57 X 38.5 X 60CM

IP RATING

IP20
