Double membrane covering the FPCB board for better protection
Cutting unit – 50mm / every 3 led
Controller system: Art-Net or off-line or on-line led controller
Description
Additional information
| Part No |

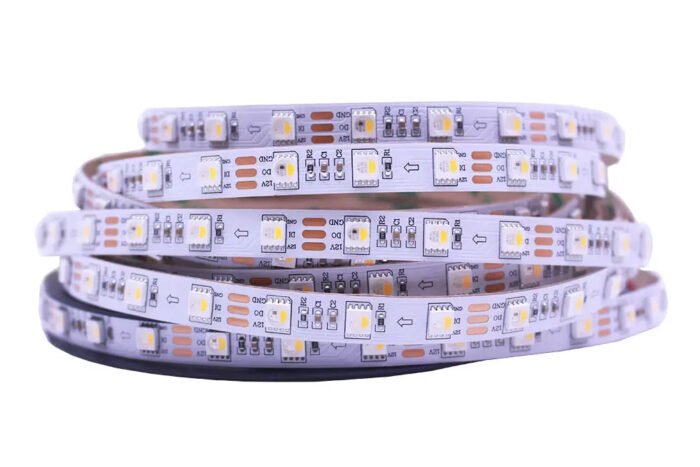

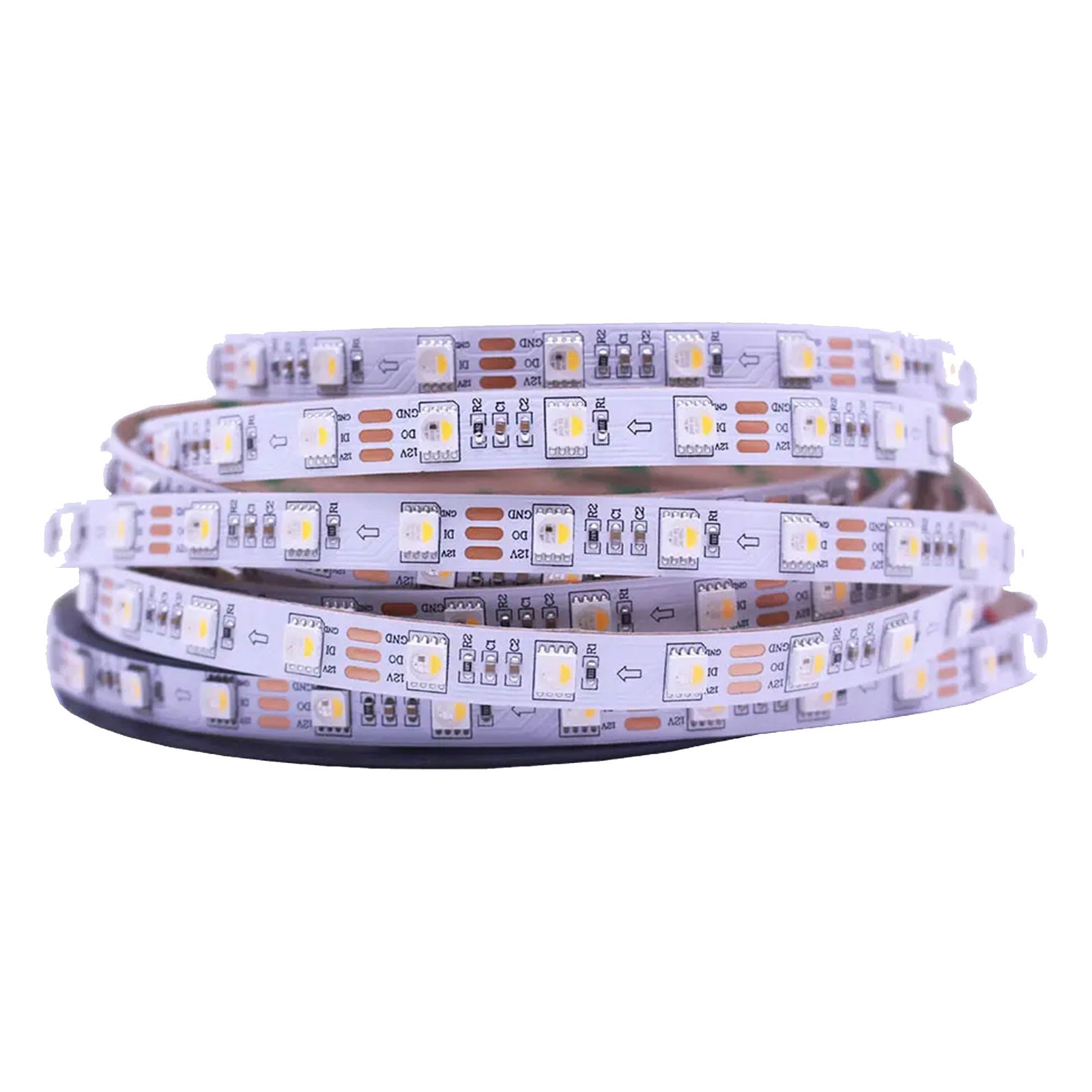

PIXEL STRIP RGB-WS2811-5050RGB-60-12V |
|---|---|
| Voltage |
DC12V |
| Power |
14.4 W / Mtr |
| LED Chip |
Sanan 5050 RGB/5050 RGB+WW |
| PIXEL QTY |
20 Pixels / Meter |
| LED Lamp QTY |
60 LEDs per meter |
| PCB Quality |
2OZ, Double layer, 25um50um copper |
| LED Qty / Pixel |
3 Led / Pixel |
| Luminance (mcd) |
2100MCD per led |
| IC chip |
WS2811 (SPI protocol) |
| Plug |
3 pin female and male connectors |
| Shell flame resistance |
V-0 |
| Working temperature |
-40℃-55℃ |
| Waterproof Grade |
lP20/IP68 |
| PCB width |
10MM |
| PCB color |
White color |
| PCB TYPE |
Backside have sticker |
| Electrical safety level |
Class III |
| DRIVE IC |
16703 |
| IP Rating |
IP 31 indoor |
| Install way |
Sticker install |
| Size |
5 meters/ roll |
