The WASH 700 BI is a high-performance moving head wash fixture designed to deliver powerful output, vibrant color washes, and dynamic lighting effects for concerts, festivals, touring, and live productions. Built on the proven platform of the WASH 800 BI, the fixture offers impressive brightness, smooth color mixing, and wide wash coverage in a more cost-effective solution. Designed for reliable professional use, the WASH 700 BI combines rugged construction, versatile beam and wash capabilities, and dependable performance to meet the demands of modern lighting environments. Combining power, creativity, and value, it is an ideal choice for professionals seeking strong wash performance without compromise.
Description
Additional information
| Lamp Source |
Lamp type: 19pc 40W RGBW 4IN1 LED's |
|---|---|
| Color System |
RGBW 4 in 1 |
| Effects |
All-optical domain dimming |
| Moving Parameter |
Angle: Pan 540° Tilt 270° PAN and TILT adopt an electro-optic reset system which automatically resets the parameters if any change is caused by accident. |
| CONTROL AND PROGRAMMING |
Control Channel: 21CH/ 22CH/ 35CH/ 36CH/ 57CH/76CH control channel model |
| Power Supply |
AC90-240V 50/60Hz Switch Power Consumption: 750W |
| Electronic Control Technology |
Fixture reset is controlled through menu or light console 0-100% dimmer Constant current drive mode Temperature sensor, intelligently adjust light source power DMX channel level monitoring Fixture information query Intelligent fan speed adjustment Initial brightness setting for all colors Over current, over voltage and overheating protection |
| Physical |

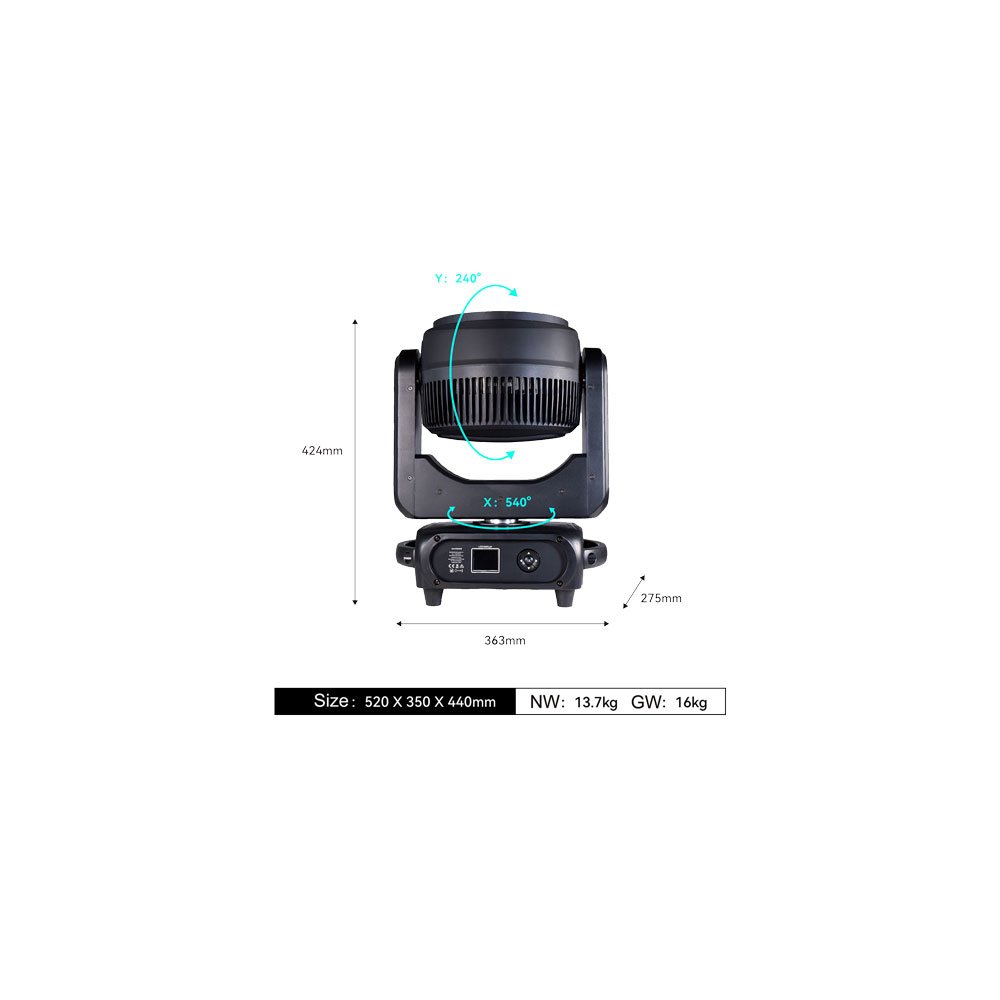

Product dimensions: 42 x 31 x 52.1 CM |
| IP Rating |
IP20 |
