Introducing the revolutionary BSWF, a groundbreaking all-in-one fixture that leaves no room for compromise. With state-of-the-art technology at its core, this fixture represents the pinnacle of innovation in the lighting industry. Combining the functionality of a beam, spot, and wash, the BSWF goes above and beyond by offering an additional ability to frame, akin to a profile fixture. This unique feature sets it apart, allowing for unparalleled precision and control over light output. At the heart of the BSWF is a powerful 450-watt white LED engine, delivering exceptional brightness and clarity across all modes of operation. Whether you’re illuminating expansive stages, creating dynamic effects in theaters, or enhancing architectural spaces, this fixture offers unmatched versatility and performance. Experience the future of lighting with the BSWF—an innovative solution that redefines what’s possible and empowers lighting professionals to push the boundaries of creativity.

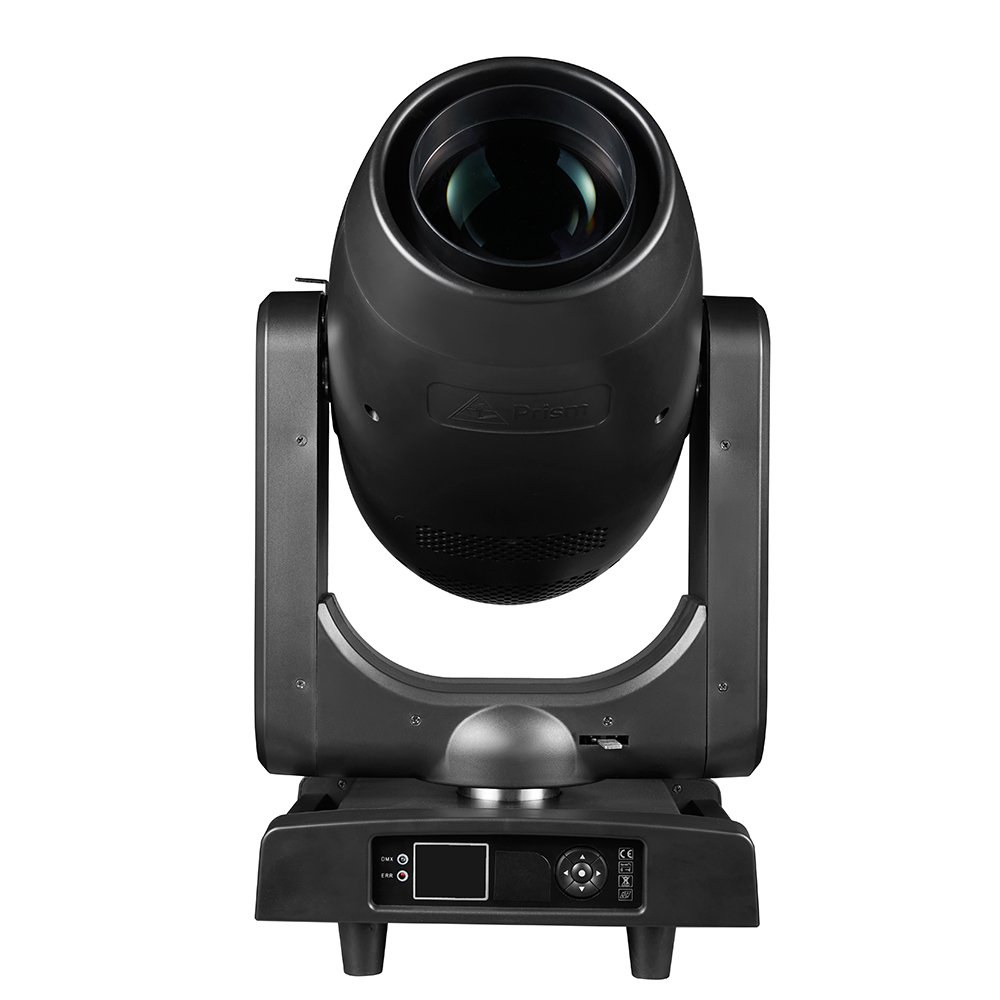

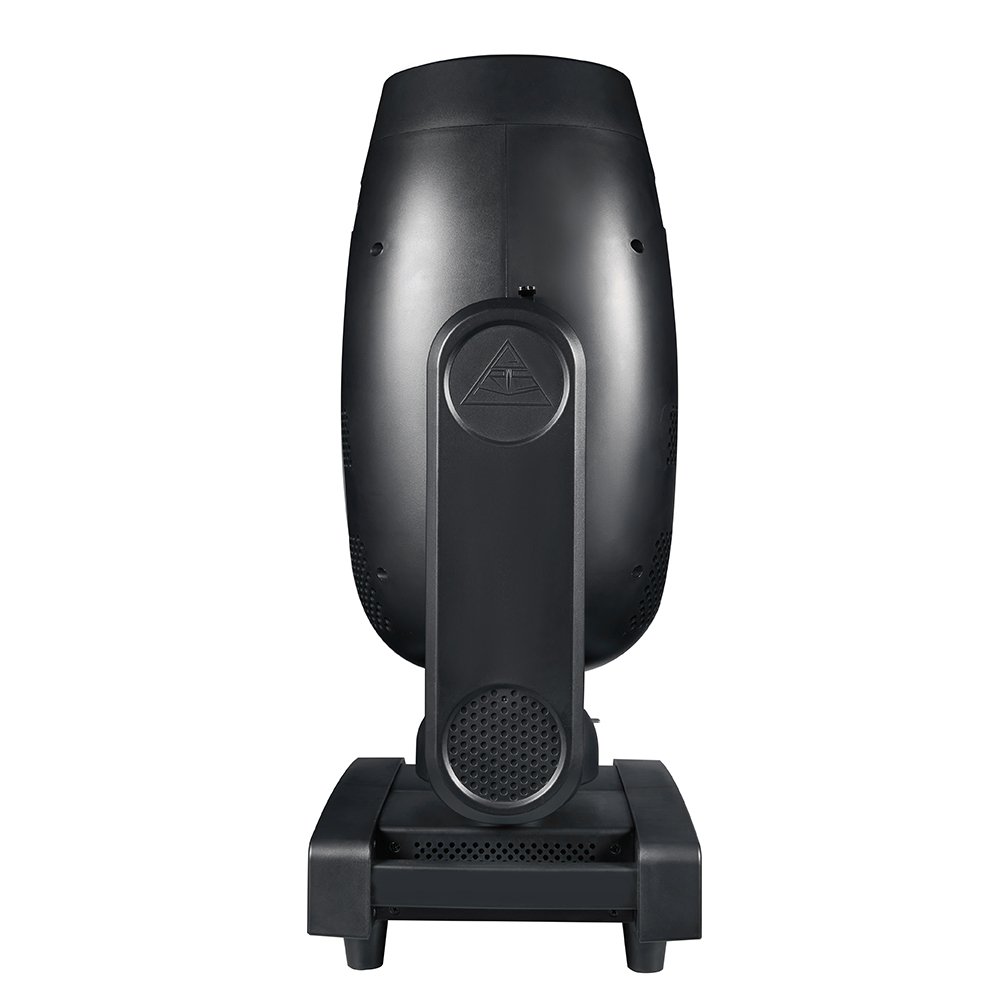

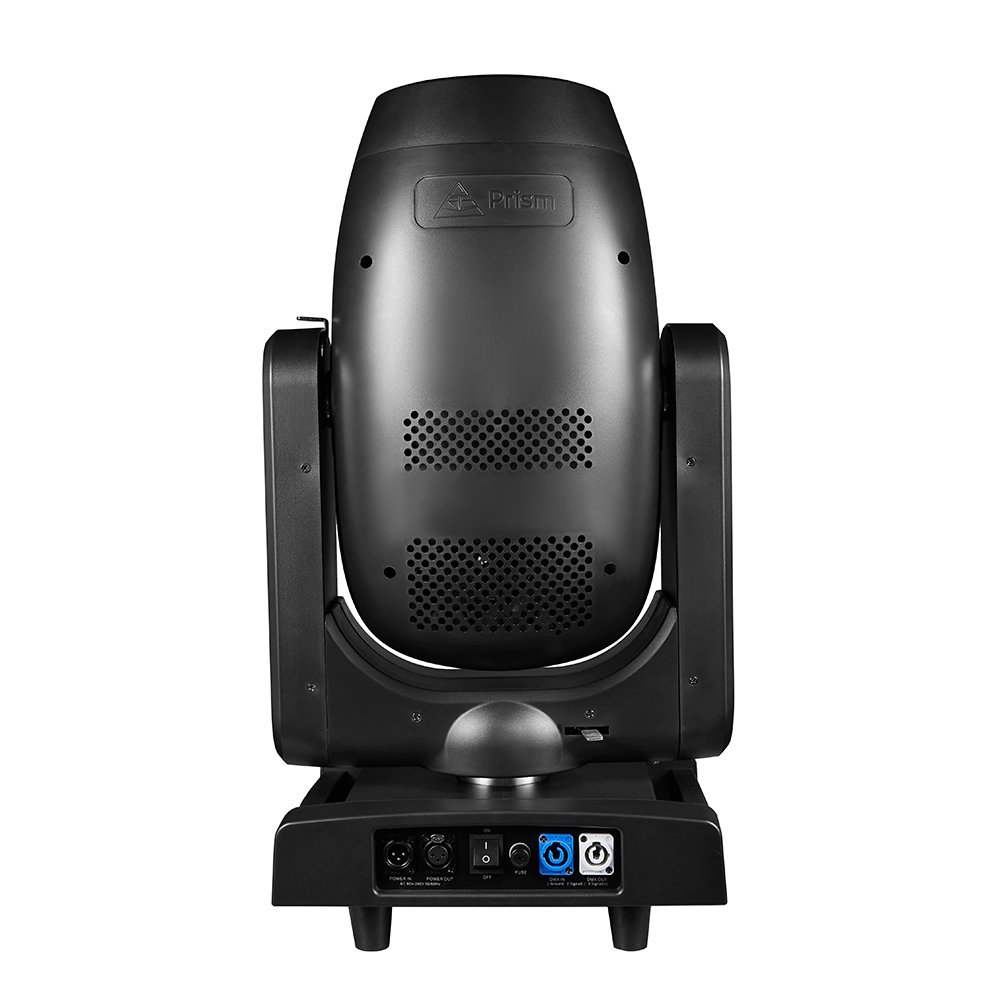

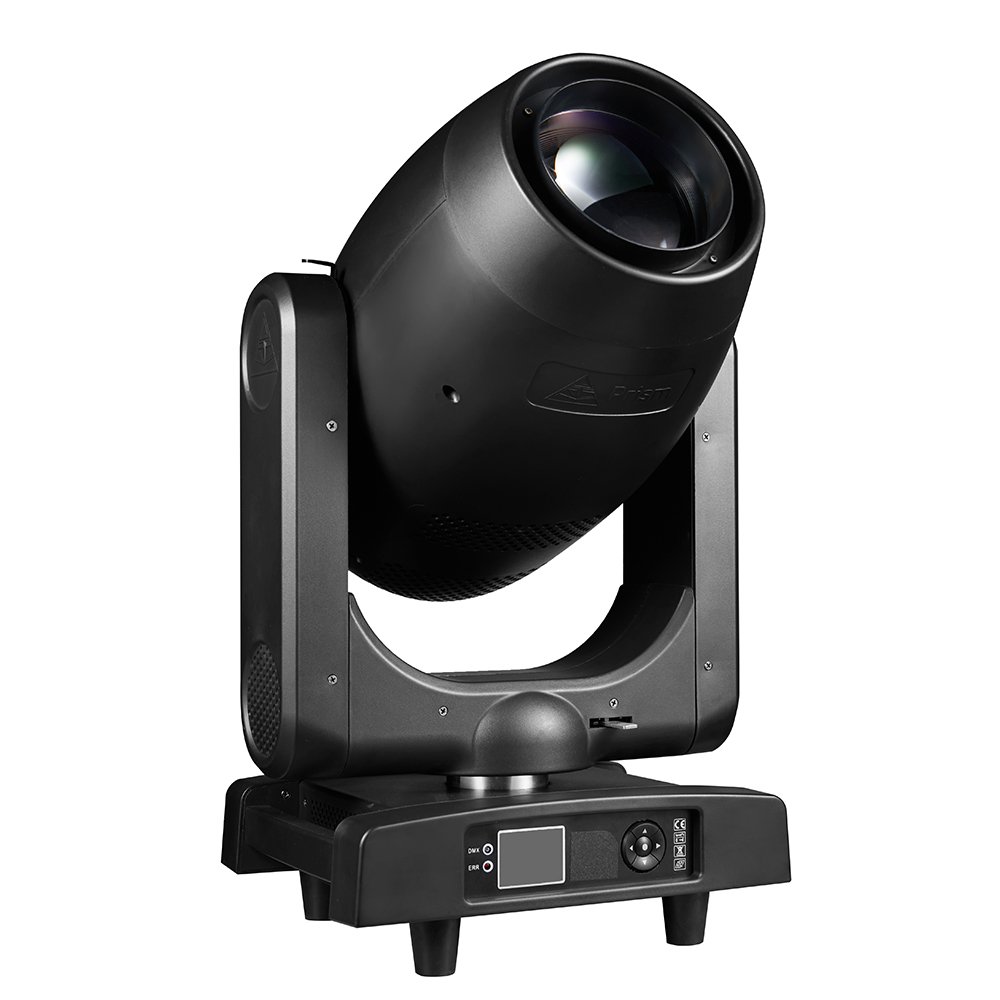

SPECTRA BSWF 1200
The SPECTRA BSWF 1200 takes the all-in-one concept to the next level, combining beam, spot, wash, and framing functions in a single, high-performance fixture. Engineered for precision and flexibility, it’s powered by an 800W white LED module, delivering powerful brightness with exceptional clarity across all applications. Its integrated framing shutter system allows accurate beam shaping, making it ideal for theatrical stages, broadcast setups, and large-scale events where control and definition are key. With smooth transitions, refined optics, and a solid build, the BSWF 1200 is designed to meet the evolving needs of modern lighting professionals. Whether you’re crafting dramatic scenes or commanding attention with bold mid-air effects, the SPECTRA BSWF 1200 delivers consistent performance with creative freedom.
Description
Additional information
| Lamp type |
800 white LED module |
|---|---|
| Average life |
20000 hours |
| Color temp |
8500K |
| Reflector |
Lamp and reflector together in one unit |
| Lens |
high-precision optical lens |
| Frost filter |
35-65° |
| Zoom Range |
5.3°- 48° (linear High Speed zoom) |
| COLOR SYSTEM |
CMY: Linear CMY color switch, non-polar color mixing |
| GOBO SYSTEM |
1 Rotating gobo wheel with 7 HD Indexable and |
| MOVING PARAMETER |
Angle: Pan 540°, Tilt 270° |
| EFFECT EQUIPMENT |
Independent frost soft effect, Mechanical linear |
| CONTROL AND PROGRAMMING |
Control channel: 36CH |
| ELECTRONIC CONTROL TECHNOLOGY |
Intelligent fan control |
| POWER SUPPLY |
AC100-240V 50/60Hz |
| PHYSICAL |
Clamp type: Inbuilt folding clamps |
| IP RATING |
IP20 |
| Lamp type |
800 white LED module |
|---|---|
| Average life |
20000 hours |
| Color temp |
8500K |
| Reflector |
Lamp and reflector together in one unit |
| Lens |
high-precision optical lens |
| Frost filter |
35-65° |
| Zoom Range |
5.3°- 48° (linear High Speed zoom) |
| COLOR SYSTEM |
CMY: Linear CMY color switch, non-polar color mixing |
| GOBO SYSTEM |
1 Rotating gobo wheel with 7 HD Indexable and |
| MOVING PARAMETER |
Angle: Pan 540°, Tilt 270° |
| EFFECT EQUIPMENT |
Independent frost soft effect, Mechanical linear |
| CONTROL AND PROGRAMMING |
Control channel: 36CH |
| ELECTRONIC CONTROL TECHNOLOGY |
Intelligent fan control |
| POWER SUPPLY |
AC100-240V 50/60Hz |
| PHYSICAL |
Clamp type: Inbuilt folding clamps |
| IP RATING |
IP20 |
