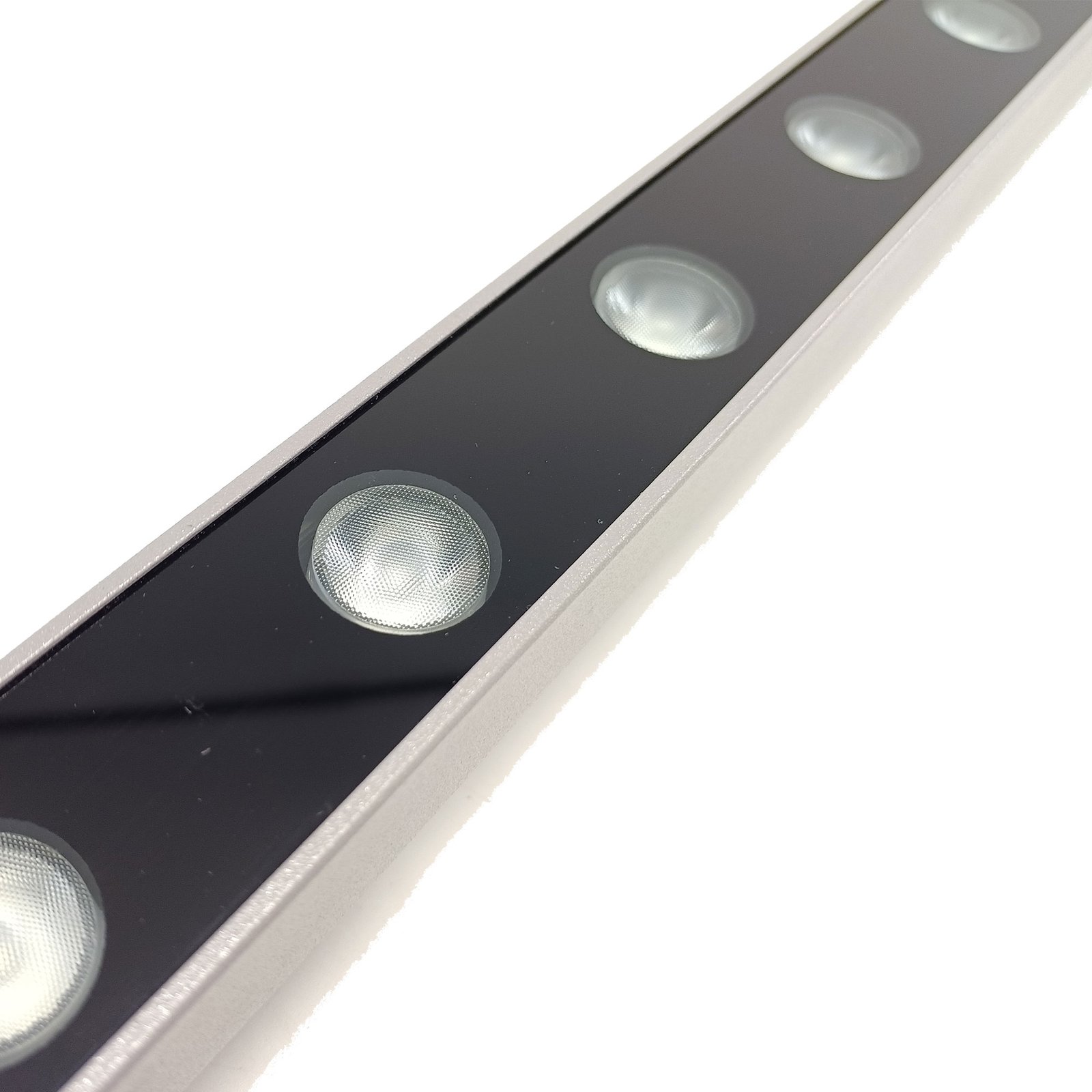

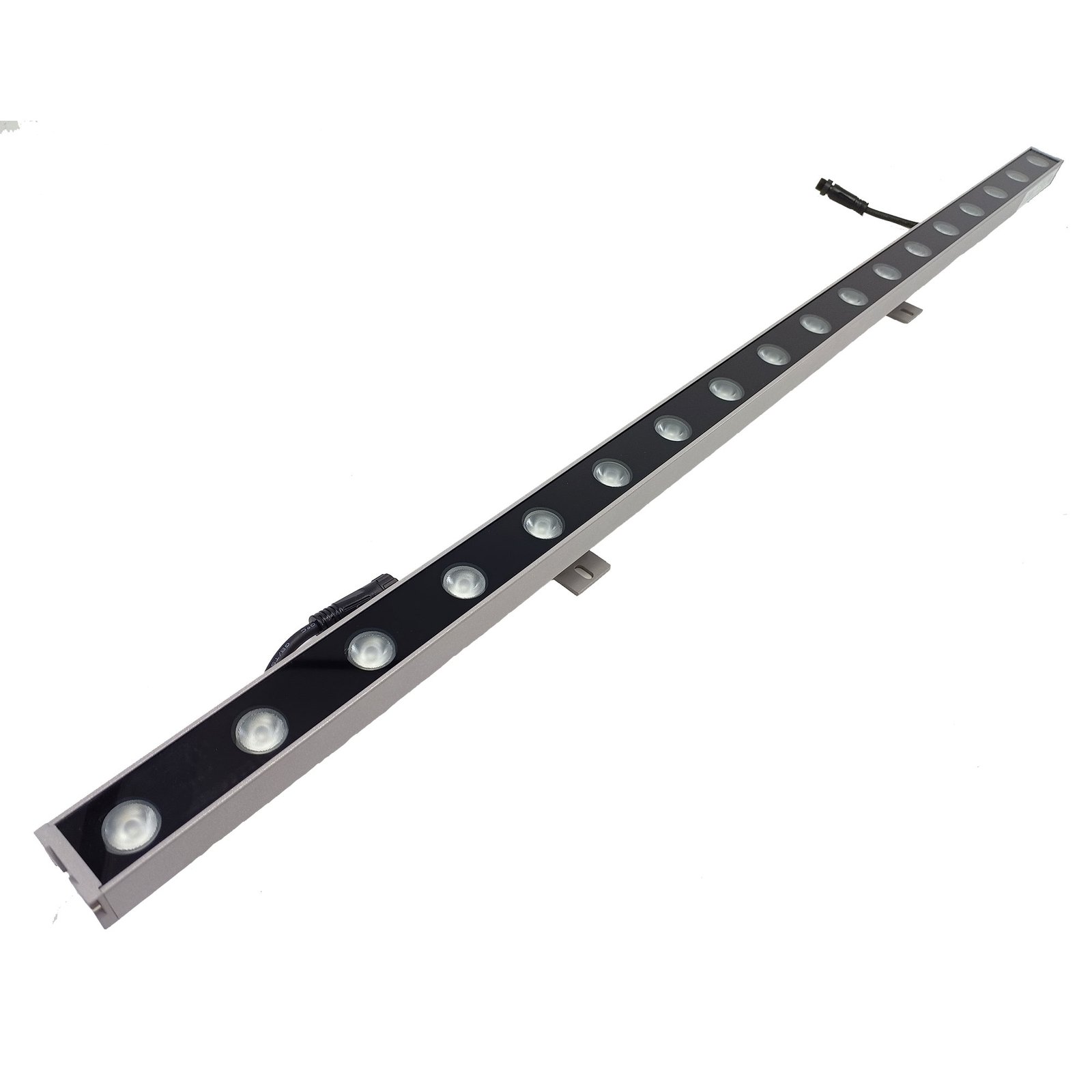

The WALL WASH LINEAR IP is purpose-built for façade lighting projects demanding precision, warmth, and flexibility. It features 24 x 1.5W RGB+WW 4-in-1 LEDs, combined with dedicated warm white LEDs (3000K) to deliver superb warmth and vibrant color blending. With 3 pixels per meter and control compatibility via DMX, SPI, and RDM, it offers dynamic pixel effects and precise scene programming. A 15° lens angle ensures powerful, long-distance coverage, making it ideal for illuminating large architectural surfaces with uniform, high-impact visuals. Its IP-rated design ensures reliable performance in all weather conditions, making the WALL WASH LINEAR IP a versatile solution for professional outdoor installations.

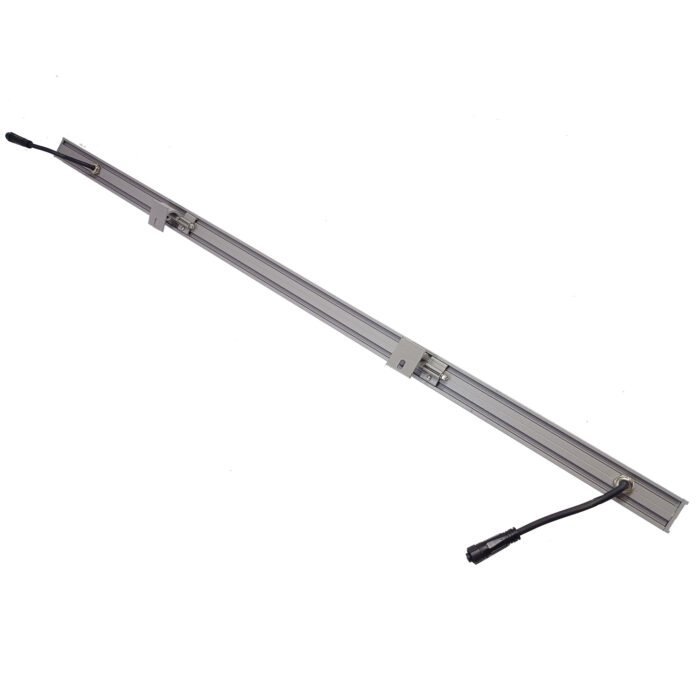

WALL WASH LINEAR IP
The WALL WASH LINEAR IP is purpose-built for façade lighting projects demanding precision, warmth, and flexibility. It features 24 x 1.5W RGB+WW 4-in-1 LEDs, combined with dedicated warm white LEDs (3000K) to deliver superb warmth and vibrant color blending. With 3 pixels per meter and control compatibility via DMX, SPI, and RDM, it offers dynamic pixel effects and precise scene programming. A 15° lens angle ensures powerful, long-distance coverage, making it ideal for illuminating large architectural surfaces with uniform, high-impact visuals. Its IP-rated design ensures reliable performance in all weather conditions, making the WALL WASH LINEAR IP a versatile solution for professional outdoor installations.
Description
Additional information
| Lamp Power |
36W |
|---|---|
| Voltage |
DC24V |
| LED Qty |
18 X 1.5 W |
| Color |
RGB – WW 4in1 |
| Life time |
50000h |
| Optics |
15° |
| IP Rating |
Ip66 |
| Operation Temperature |
-20°C To 45°C |
| Control signal |
DMX512, RDM / SPI |
| Channels |
12CH |
| PIXEL Qty. |
3 |
| Dimmer |
Linear or nonlinear dimmer 0-100% |
| Strobe |
0-25Hz/sec |
| Product Dimension |
100 X 3.5 X 6 CM |
| Net Weight |
1.90 KG |
| Gross Weight |
12 KG |
| Cardboard Package (2 in 1) |
106 X 26 X 28 CM |
