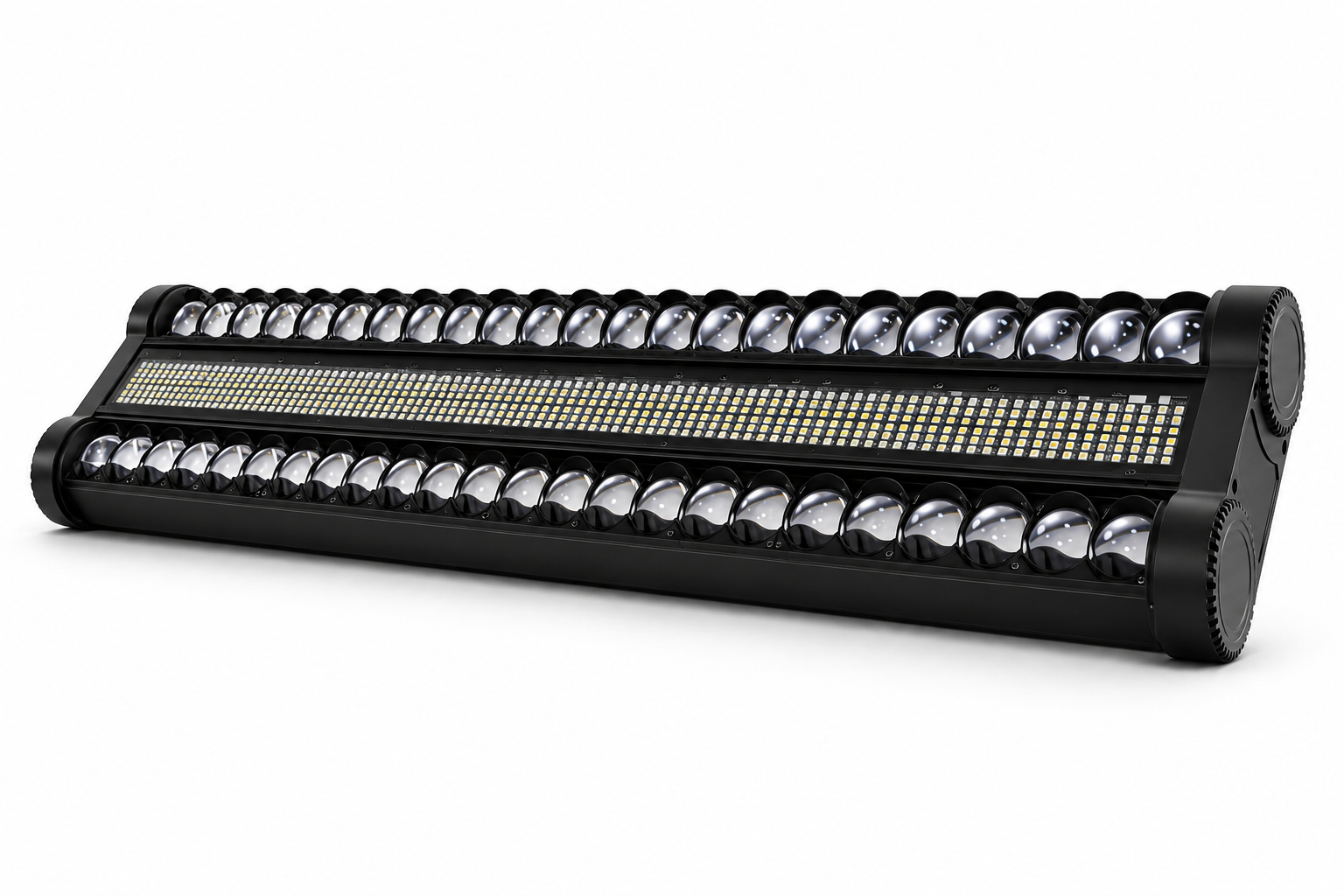

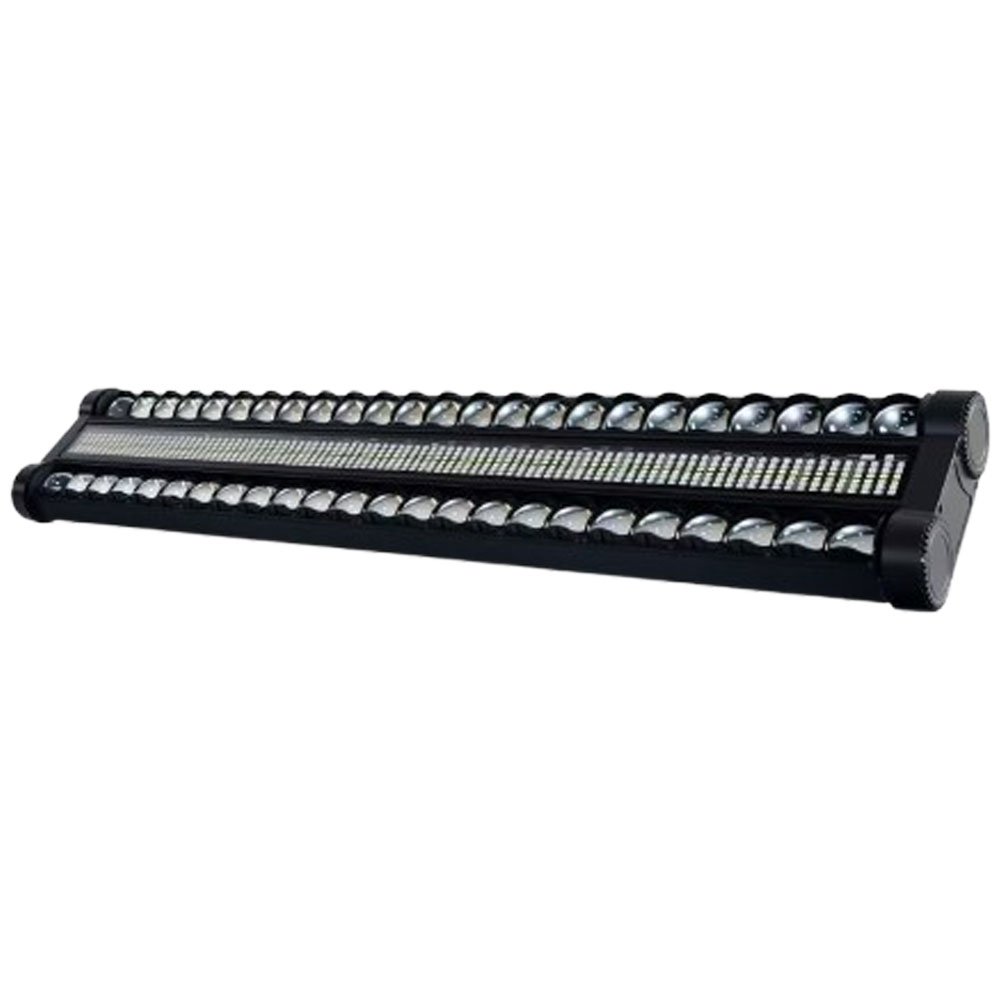

Introducing the all-new PIXORA DUAL, a high-performance creative LED fixture designed for dynamic pixel effects, vibrant color output, and immersive stage visuals. Featuring advanced RGBW and multi-segment LED technology with precise pixel control, the fixture delivers powerful beam, wash, and strobe effects for concerts, live productions, TV studios, and creative stage environments. Equipped with smooth 32-bit dimming, high-speed strobe effects, focus functionality, and multiple channel modes with RDM support, PIXCEL DUAL offers exceptional flexibility for modern lighting designers. Built in a rugged metallic body with professional connectivity, it combines creative performance, motion effects, and reliable operation in one versatile fixture.
| Voltage |
AC100~240V 50/60HZ |
|---|---|
| Power |
253W |
| Lamp beads |
24 segments of RGBW 3535-8W spherical surface in each row + 384 pieces of 5050 three-color LED lamp beads in 48 segments + 192 pieces of 5730 white light in 24 segments |
| Control mode |
DMX512, self-propelled, master-slave,RDM |
| Channels |
CH21, CH38, CH86, CH110, CH369 |
| Dimming |
32bit 0~100% linear dimming |
| Features |
Shake head + dye + focus |
| Operating temperature |
-30°C~50°C |
| Strobe frequency |
1~30HZ |
| Appearance |
Metallic, black |
| Connection |
DMX512 input and output / power input and output |
| Weight |
9.5kg |
| Size |
1075×215×100mm |
| Gross Weight |
22 KG (Cardboard packing 2in1) |
| Package |
114X29X39 CM (Cardboard packing 6in1) |
| IP Rating |
IP20 |
| Voltage |
AC100~240V 50/60HZ |
|---|---|
| Power |
253W |
| Lamp beads |
24 segments of RGBW 3535-8W spherical surface in each row + 384 pieces of 5050 three-color LED lamp beads in 48 segments + 192 pieces of 5730 white light in 24 segments |
| Control mode |
DMX512, self-propelled, master-slave,RDM |
| Channels |
CH21, CH38, CH86, CH110, CH369 |
| Dimming |
32bit 0~100% linear dimming |
| Features |
Shake head + dye + focus |
| Operating temperature |
-30°C~50°C |
| Strobe frequency |
1~30HZ |
| Appearance |
Metallic, black |
| Connection |
DMX512 input and output / power input and output |
| Weight |
9.5kg |
| Size |
1075×215×100mm |
| Gross Weight |
22 KG (Cardboard packing 2in1) |
| Package |
114X29X39 CM (Cardboard packing 6in1) |
| IP Rating |
IP20 |
Discription
Introducing the all-new PIXORA DUAL, a high-performance creative LED fixture designed for dynamic pixel effects, vibrant color output, and immersive stage visuals. Featuring advanced RGBW and multi-segment LED technology with precise pixel control, the fixture delivers powerful beam, wash, and strobe effects for concerts, live productions, TV studios, and creative stage environments. Equipped with smooth 32-bit dimming, high-speed strobe effects, focus functionality, and multiple channel modes with RDM support, PIXCEL DUAL offers exceptional flexibility for modern lighting designers. Built in a rugged metallic body with professional connectivity, it combines creative performance, motion effects, and reliable operation in one versatile fixture.
Additional Information
| Voltage |
AC100~240V 50/60HZ |
|---|---|
| Power |
253W |
| Lamp beads |
24 segments of RGBW 3535-8W spherical surface in each row + 384 pieces of 5050 three-color LED lamp beads in 48 segments + 192 pieces of 5730 white light in 24 segments |
| Control mode |
DMX512, self-propelled, master-slave,RDM |
| Channels |
CH21, CH38, CH86, CH110, CH369 |
| Dimming |
32bit 0~100% linear dimming |
| Features |
Shake head + dye + focus |
| Operating temperature |
-30°C~50°C |
| Strobe frequency |
1~30HZ |
| Appearance |
Metallic, black |
| Connection |
DMX512 input and output / power input and output |
| Weight |
9.5kg |
| Size |
1075×215×100mm |
| Gross Weight |
22 KG (Cardboard packing 2in1) |
| Package |
114X29X39 CM (Cardboard packing 6in1) |
| IP Rating |
IP20 |
