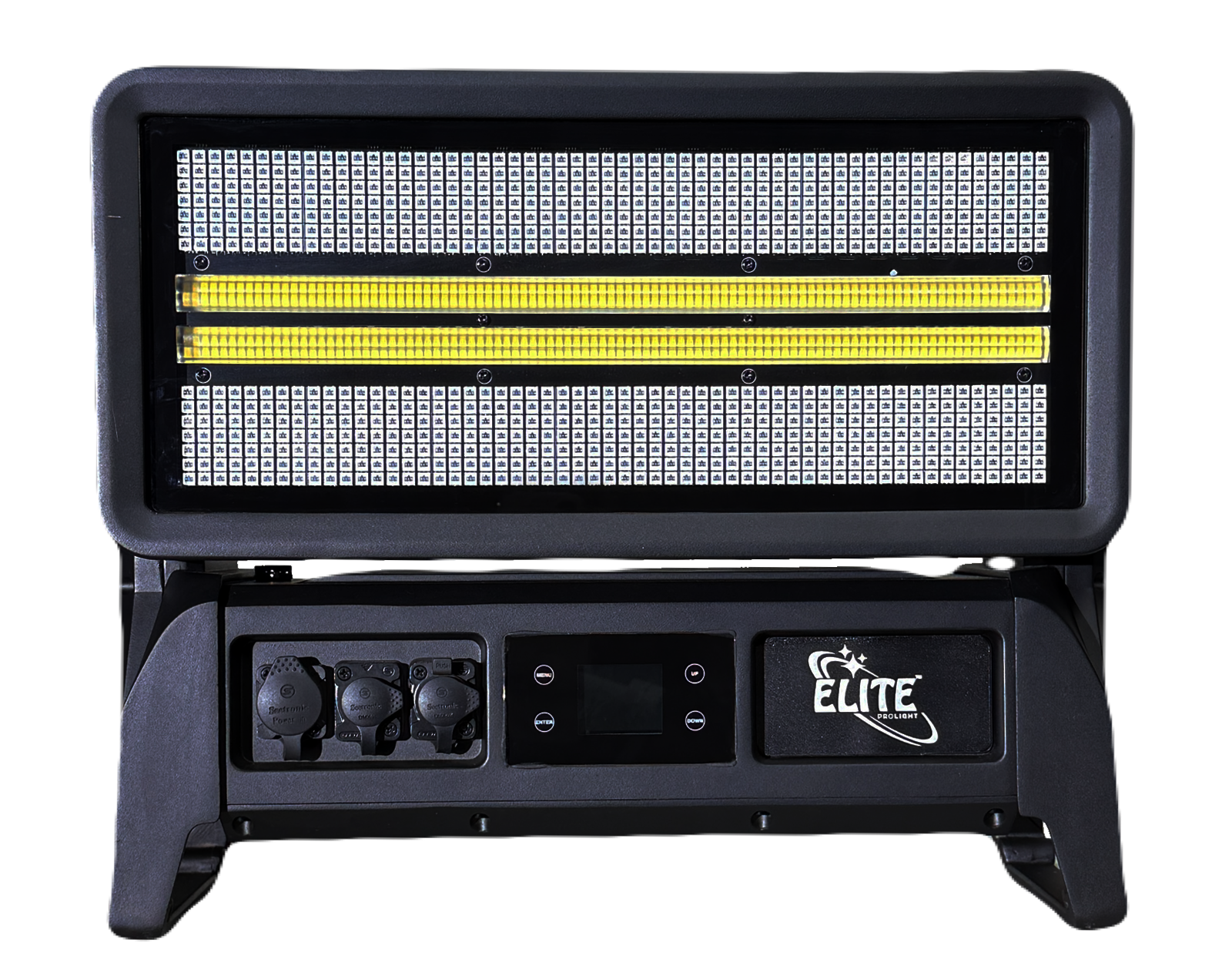

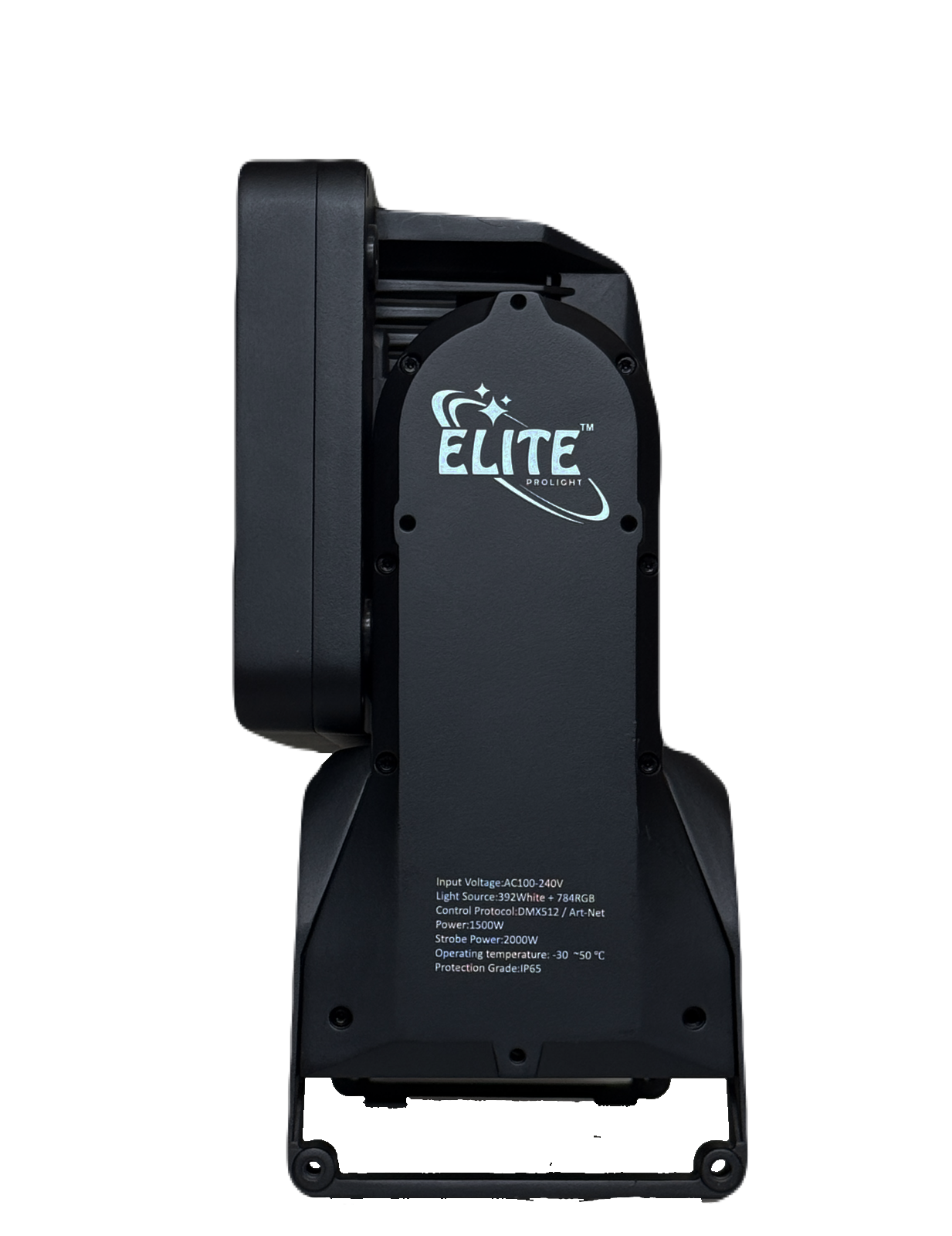

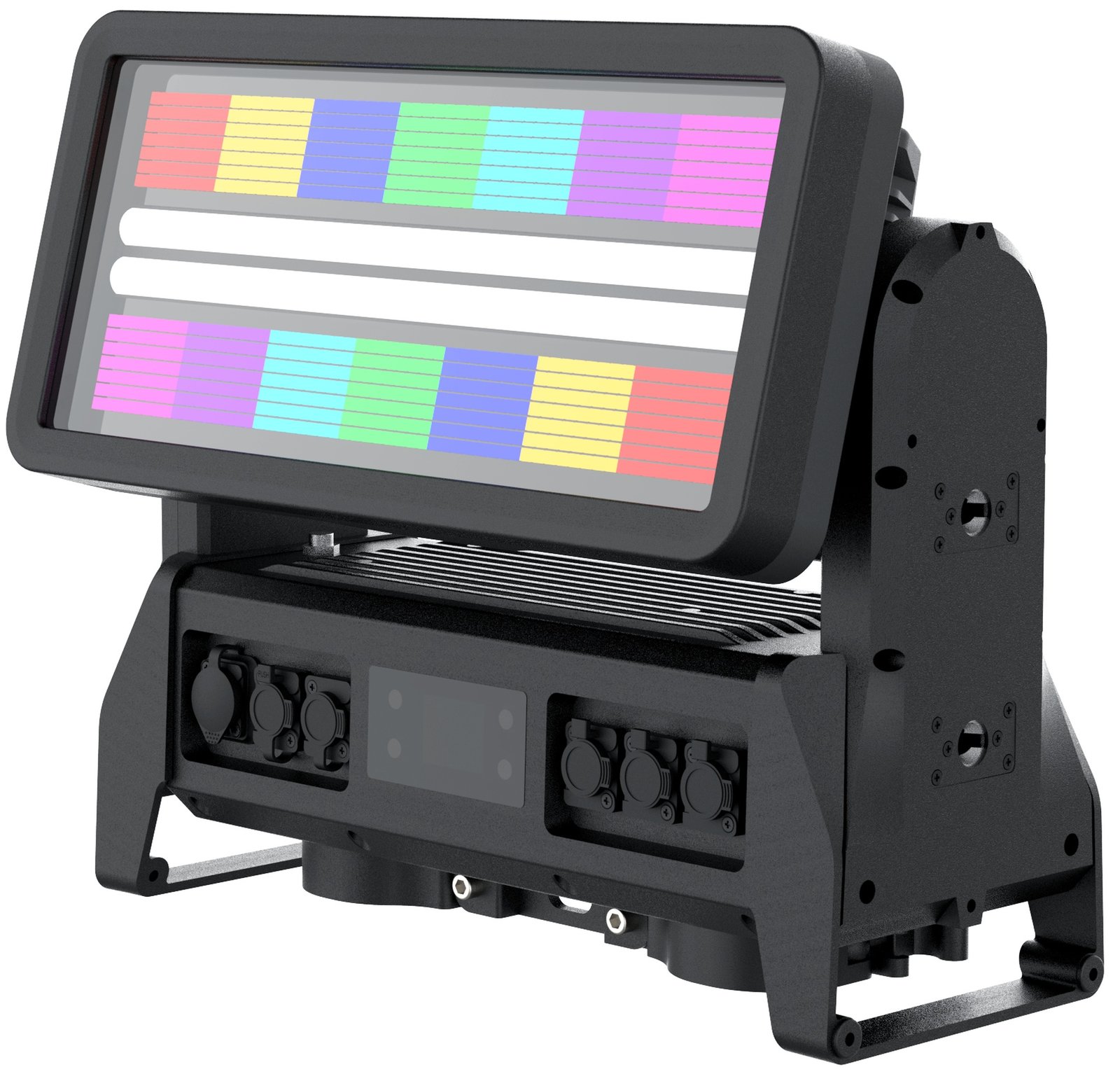

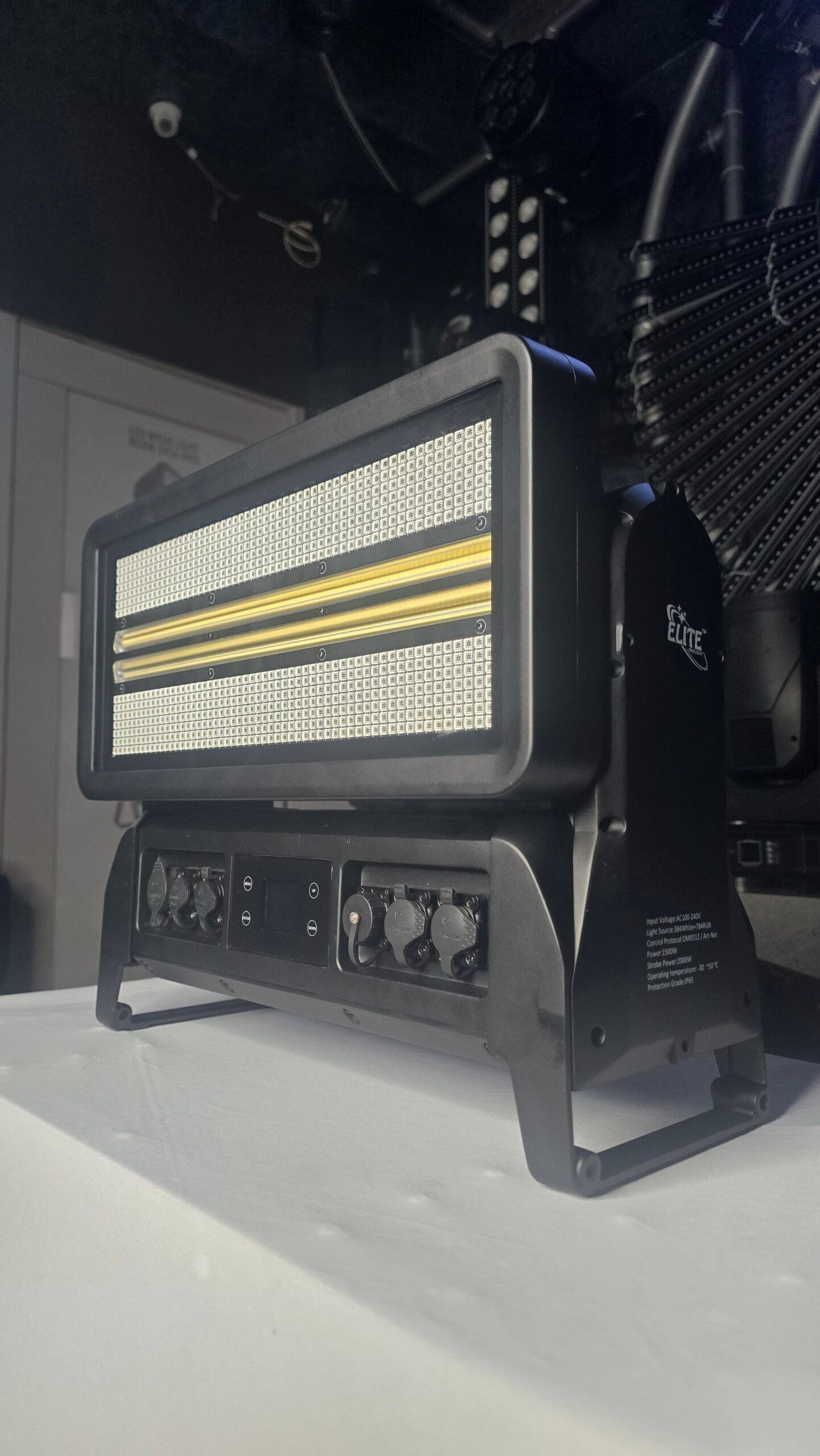

Introducing the all-new VORTEX 7000, a high-output IP65-rated hybrid strobe and wash fixture designed for concerts, festivals, touring, and large-scale productions. Featuring powerful RGB LEDs combined with ultra-bright white strobe elements, the fixture delivers intense flashes, vibrant color washes, and dynamic pixel-mapped effects with exceptional visual impact. Equipped with smooth 16-bit dimming, multiple dimming curves, high-speed strobe effects, and advanced control support including DMX, RDM, Art-Net, and sACN, the VORTEX 7000 offers exceptional flexibility for modern lighting designers. Its rugged die-cast magnesium aluminum body, noiseless cooling system, and all-weather IP65 protection ensure reliable performance in any environment.
| Voltage |
AC90–240V 50/60Hz |
|---|---|
| Power |
1362W |
| Light source |
784 × 1.5W RGB LEDs + 392 × 2W CW LEDs |
| Output |
108,000 Lumens |
| Beam Angle |
117° |
| Tilt |
180° |
| Dimming |
16-bit Smooth Dimming |
| Strobe |
0–30Hz |
| Control |
DMX / RDM / Art-Net / sACN |
| DMX Channels |
8 / 11 / 13 / 24 / 30 / 47 / 68 / 74 / 97 CH |
| Cooling |
Noiseless Fan Cooling |
| IP Rating |
IP65 |
| Body |
Die-cast Magnesium Aluminum |
| Dimensions |
431 × 194 × 361 mm |
| Net Weight |
13.1 Kg |
| Voltage |
AC90–240V 50/60Hz |
|---|---|
| Power |
1362W |
| Light source |
784 × 1.5W RGB LEDs + 392 × 2W CW LEDs |
| Output |
108,000 Lumens |
| Beam Angle |
117° |
| Tilt |
180° |
| Dimming |
16-bit Smooth Dimming |
| Strobe |
0–30Hz |
| Control |
DMX / RDM / Art-Net / sACN |
| DMX Channels |
8 / 11 / 13 / 24 / 30 / 47 / 68 / 74 / 97 CH |
| Cooling |
Noiseless Fan Cooling |
| IP Rating |
IP65 |
| Body |
Die-cast Magnesium Aluminum |
| Dimensions |
431 × 194 × 361 mm |
| Net Weight |
13.1 Kg |
Discription
Introducing the all-new VORTEX 7000, a high-output IP65-rated hybrid strobe and wash fixture designed for concerts, festivals, touring, and large-scale productions. Featuring powerful RGB LEDs combined with ultra-bright white strobe elements, the fixture delivers intense flashes, vibrant color washes, and dynamic pixel-mapped effects with exceptional visual impact. Equipped with smooth 16-bit dimming, multiple dimming curves, high-speed strobe effects, and advanced control support including DMX, RDM, Art-Net, and sACN, the VORTEX 7000 offers exceptional flexibility for modern lighting designers. Its rugged die-cast magnesium aluminum body, noiseless cooling system, and all-weather IP65 protection ensure reliable performance in any environment.
Additional Information
| Voltage |
AC90–240V 50/60Hz |
|---|---|
| Power |
1362W |
| Light source |
784 × 1.5W RGB LEDs + 392 × 2W CW LEDs |
| Output |
108,000 Lumens |
| Beam Angle |
117° |
| Tilt |
180° |
| Dimming |
16-bit Smooth Dimming |
| Strobe |
0–30Hz |
| Control |
DMX / RDM / Art-Net / sACN |
| DMX Channels |
8 / 11 / 13 / 24 / 30 / 47 / 68 / 74 / 97 CH |
| Cooling |
Noiseless Fan Cooling |
| IP Rating |
IP65 |
| Body |
Die-cast Magnesium Aluminum |
| Dimensions |
431 × 194 × 361 mm |
| Net Weight |
13.1 Kg |
