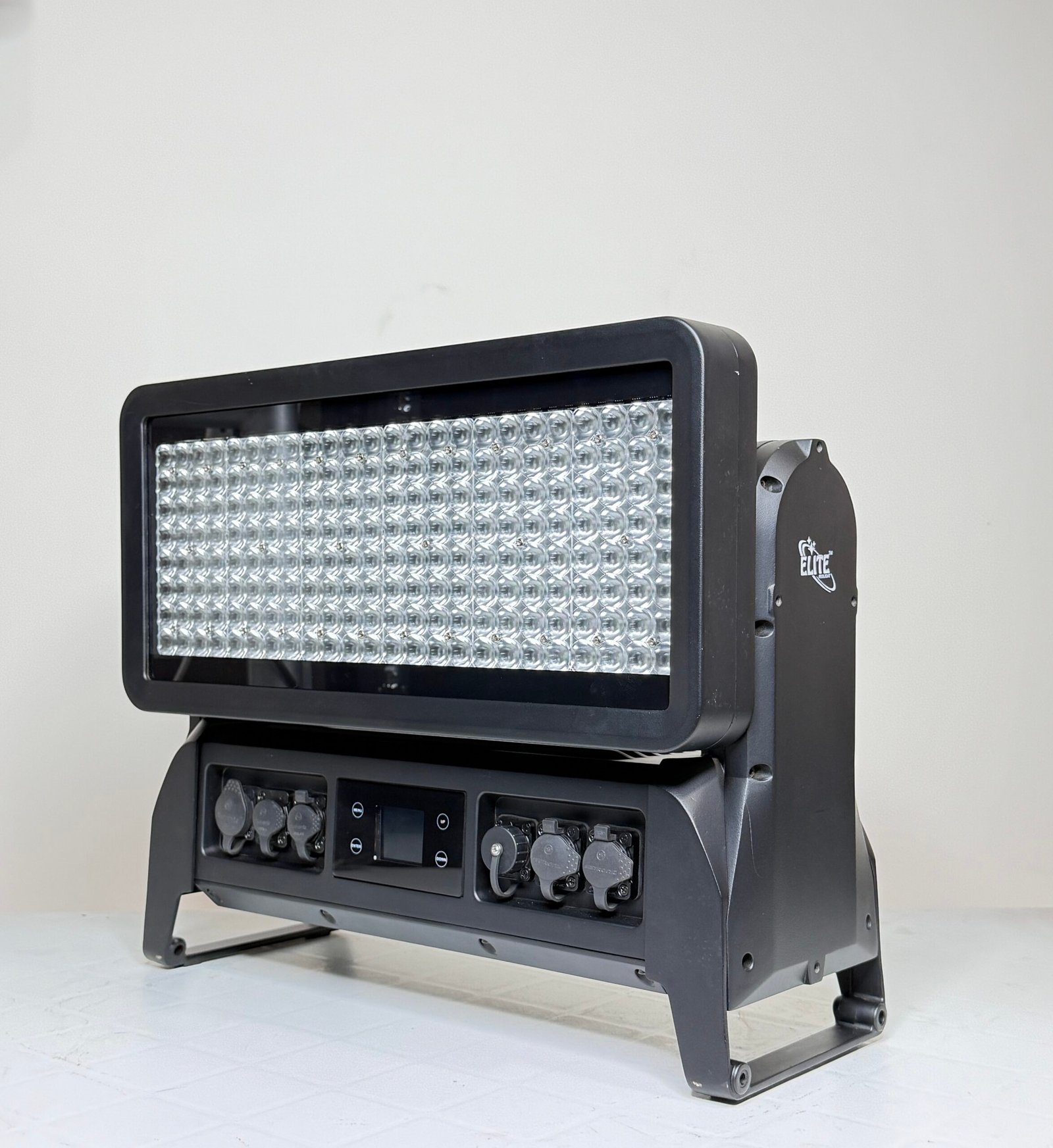

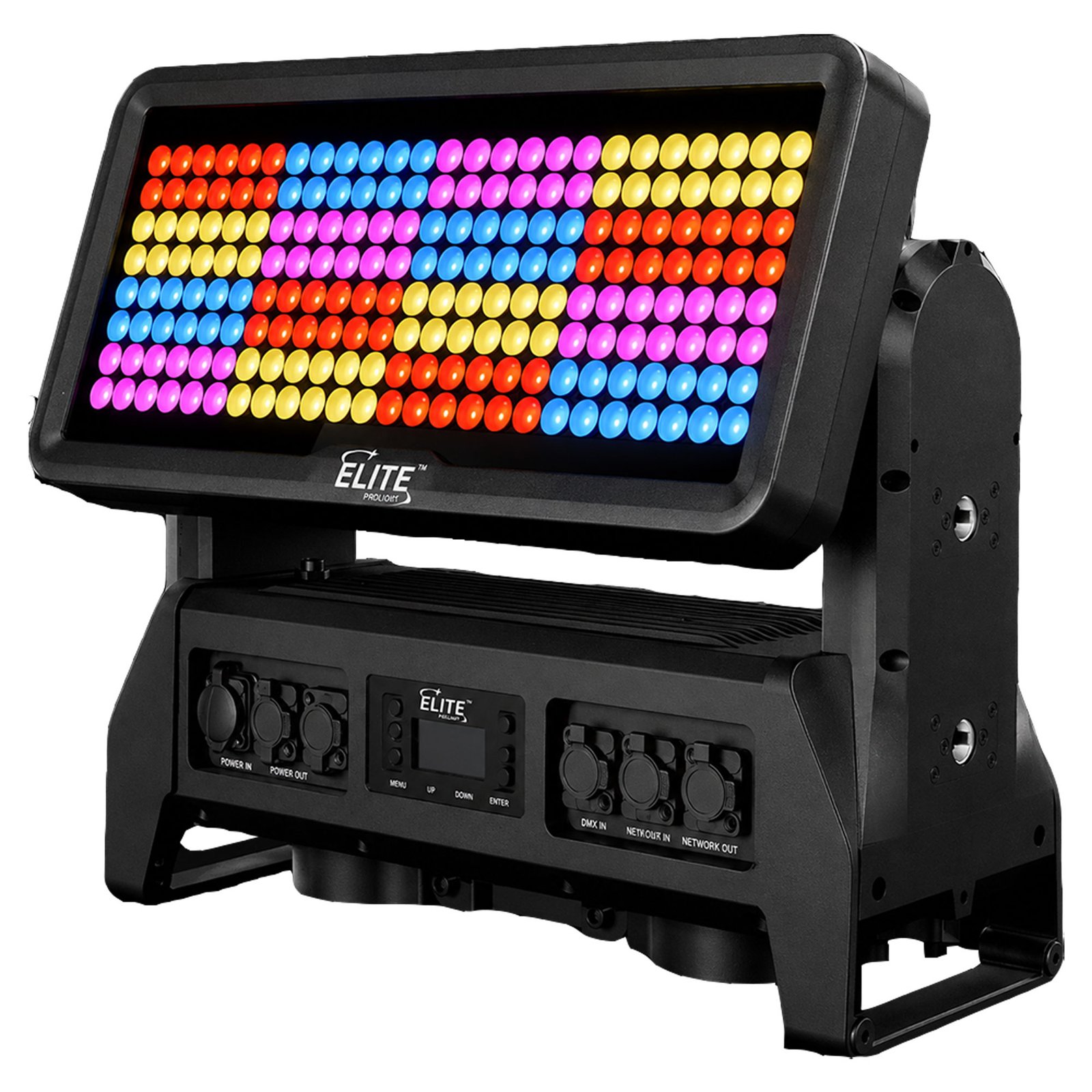

Introducing the all-new VORTEX 9000, a high-power IP65-rated hybrid strobe and wash fixture designed for extreme visual impact in concerts, festivals, touring, and outdoor productions. Featuring ultra-bright white strobe elements combined with vibrant RGB pixel-mappable zones, the fixture delivers intense flashes, powerful color washes, and dynamic motion effects with precise pixel control. With a wide 180° tilt range, built-in effect macros, smooth 16-bit dimming, and advanced control support including DMX, Art-Net, sACN, and RDM, the VORTEX 9000 offers exceptional flexibility for modern lighting designers. Its rugged IP65 construction, versatile rigging options, and professional-grade performance make it ideal for demanding indoor and outdoor environments.
| Voltage |
AC90–240V 50/60Hz |
|---|---|
| Power |
1362W |
| Light source |
192 × 15W RGBW LEDs |
| Output |
64,100 Lumens |
| Beam Angle |
23° |
| Tilt |
180° |
| Dimming |
16-bit Smooth Dimming |
| Strobe |
0–30Hz |
| Control |
DMX / RDM / Art-Net / sACN |
| DMX Channels |
6 / 10 / 14 / 53 / 71 CH |
| Cooling |
Noiseless Fan Cooling |
| IP Rating |
IP65 |
| Body |
Die-cast Magnesium Aluminum |
| Dimensions |
431 X 194 X 361 MM |
| Net Weight |
13.1 Kg |
| Voltage |
AC90–240V 50/60Hz |
|---|---|
| Power |
1362W |
| Light source |
192 × 15W RGBW LEDs |
| Output |
64,100 Lumens |
| Beam Angle |
23° |
| Tilt |
180° |
| Dimming |
16-bit Smooth Dimming |
| Strobe |
0–30Hz |
| Control |
DMX / RDM / Art-Net / sACN |
| DMX Channels |
6 / 10 / 14 / 53 / 71 CH |
| Cooling |
Noiseless Fan Cooling |
| IP Rating |
IP65 |
| Body |
Die-cast Magnesium Aluminum |
| Dimensions |
431 X 194 X 361 MM |
| Net Weight |
13.1 Kg |
Discription
Introducing the all-new VORTEX 9000, a high-power IP65-rated hybrid strobe and wash fixture designed for extreme visual impact in concerts, festivals, touring, and outdoor productions. Featuring ultra-bright white strobe elements combined with vibrant RGB pixel-mappable zones, the fixture delivers intense flashes, powerful color washes, and dynamic motion effects with precise pixel control. With a wide 180° tilt range, built-in effect macros, smooth 16-bit dimming, and advanced control support including DMX, Art-Net, sACN, and RDM, the VORTEX 9000 offers exceptional flexibility for modern lighting designers. Its rugged IP65 construction, versatile rigging options, and professional-grade performance make it ideal for demanding indoor and outdoor environments.
Additional Information
| Voltage |
AC90–240V 50/60Hz |
|---|---|
| Power |
1362W |
| Light source |
192 × 15W RGBW LEDs |
| Output |
64,100 Lumens |
| Beam Angle |
23° |
| Tilt |
180° |
| Dimming |
16-bit Smooth Dimming |
| Strobe |
0–30Hz |
| Control |
DMX / RDM / Art-Net / sACN |
| DMX Channels |
6 / 10 / 14 / 53 / 71 CH |
| Cooling |
Noiseless Fan Cooling |
| IP Rating |
IP65 |
| Body |
Die-cast Magnesium Aluminum |
| Dimensions |
431 X 194 X 361 MM |
| Net Weight |
13.1 Kg |
