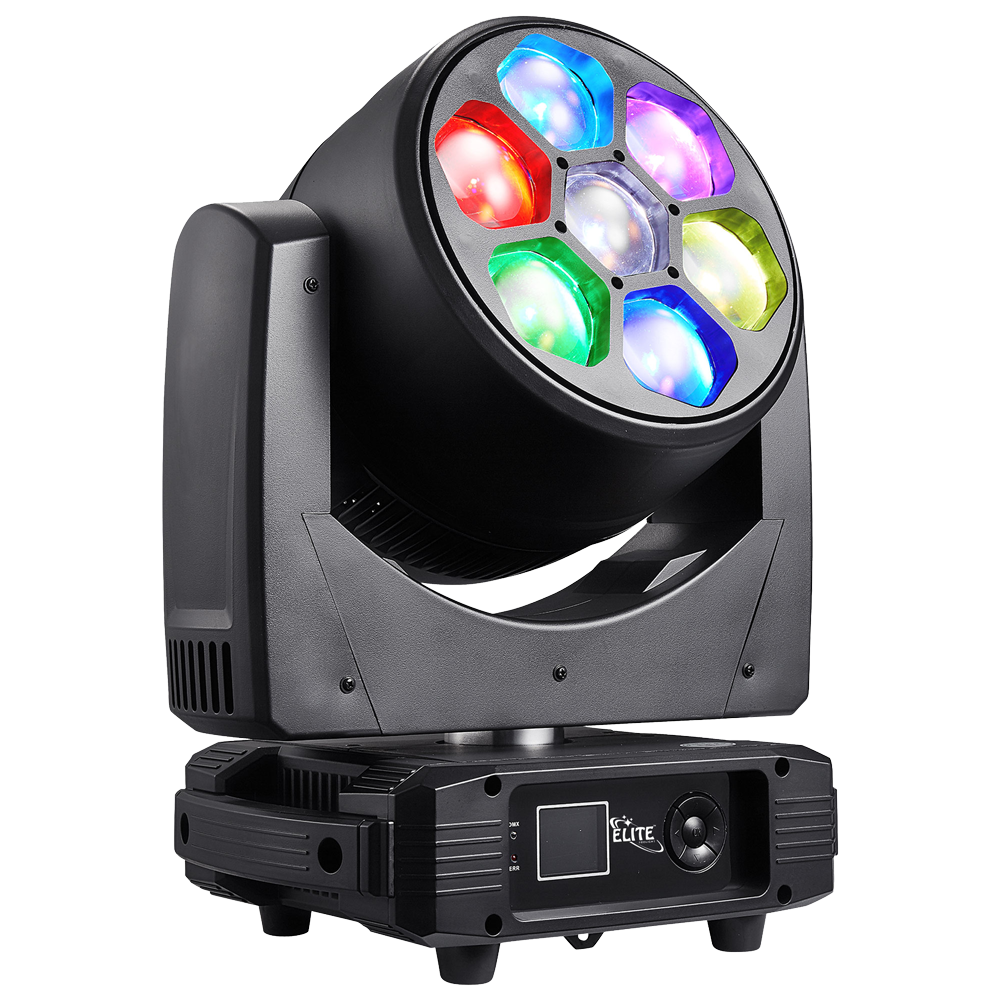

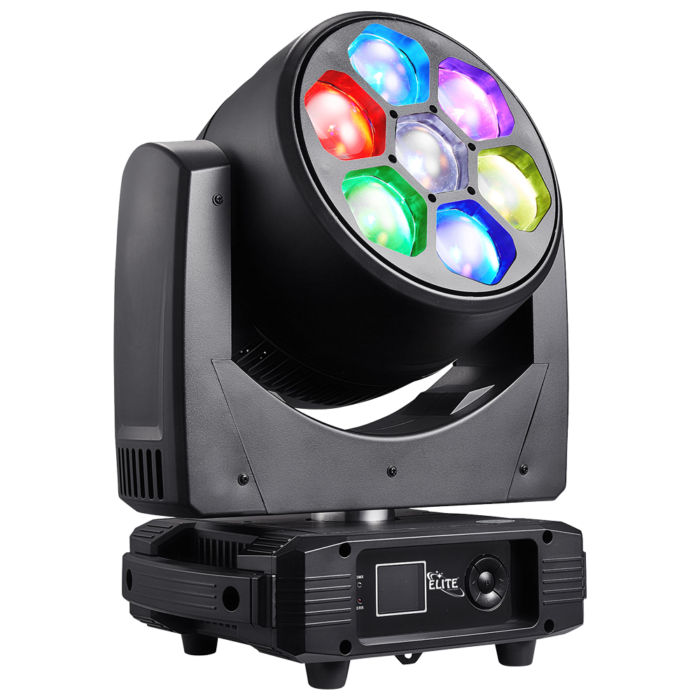

WASH 500 BI

  • Introducing the WASH 500 BI, the big brother of our esteemed Wash 400 BI. Sharing the same powerful configuration of seven 40-watt LED lamps, this fixture is housed in a full-sized chassis specifically crafted for event rental companies.Designed to meet the demands of professional lighting setups, the WASH 500 BI delivers exceptional performance and versatility. Whether illuminating large event spaces, outdoor venues, or concert stages, this fixture offers unparalleled brightness and coverage, ensuring every detail is brought to life with stunning clarity and precision.With its robust construction and advanced features, including dual-functionality as both a beam and wash fixture, the WASH 500 BI is the perfect choice for event rental companies looking to elevate their lighting inventory. From corporate events to music festivals, this fixture delivers unmatched reliability and performance, setting the standard for excellence in event lighting.
Description

Introducing the WASH 500 BI, the big brother of our esteemed Wash 400 BI. Sharing the same powerful configuration of seven 40-watt LED lamps, this fixture is housed in a full-sized chassis specifically crafted for event rental companies.

Designed to meet the demands of professional lighting setups, the WASH 500 BI delivers exceptional performance and versatility. Whether illuminating large event spaces, outdoor venues, or concert stages, this fixture offers unparalleled brightness and coverage, ensuring every detail is brought to life with stunning clarity and precision.

With its robust construction and advanced features, including dual-functionality as both a beam and wash fixture, the WASH 500 BI is the perfect choice for event rental companies looking to elevate their lighting inventory. From corporate events to music festivals, this fixture delivers unmatched reliability and performance, setting the standard for excellence in event lighting.

Additional information
LAMP SOURCE

Lamp type: 7pc 40W RGBW 4IN1 LED’s
Average life: 50000 hours
Lens: High quality optical lens
Beam angle: 4.5°- 45°

Color System

RGBW 4 in 1

Effects

All-optical domain dimming
High light output, low glare
Fast Strobe: 1-25HZ
Color macro and gradual color change effects.

Moving Parameter

Angle: Pan 540° Tilt 270° PAN and TILT adopt an electro-optic reset system which automatically resets the parameters if any change is caused by accident.

Power Supply

AC100-240V 50/60Hz Switch Power
Consumption: 350W

Electronic Control Technology

Fixture reset is controlled through menu or light console 0-100% dimmer Constant current drive mode Temperature sensor, intelligently adjust light source power DMX channel level monitoring Fixture information query Intelligent fan speed adjustment Initial brightness setting for all colors Over current, over voltage and overheating protection

Physical

Product dimensions: 35 x 35 x 45.1 CM
Net weight: 11.6KG
Flight case packaging 2 in 1: 68 x 41 x 59 CM
Gross weight: 38 KG

IP Rating

IP20

Download Drivers
User Manual
LAMP SOURCE

Lamp type: 7pc 40W RGBW 4IN1 LED’s
Average life: 50000 hours
Lens: High quality optical lens
Beam angle: 4.5°- 45°

Color System

RGBW 4 in 1

Effects

All-optical domain dimming
High light output, low glare
Fast Strobe: 1-25HZ
Color macro and gradual color change effects.

Moving Parameter

Angle: Pan 540° Tilt 270° PAN and TILT adopt an electro-optic reset system which automatically resets the parameters if any change is caused by accident.

Power Supply

AC100-240V 50/60Hz Switch Power
Consumption: 350W

Electronic Control Technology

Fixture reset is controlled through menu or light console 0-100% dimmer Constant current drive mode Temperature sensor, intelligently adjust light source power DMX channel level monitoring Fixture information query Intelligent fan speed adjustment Initial brightness setting for all colors Over current, over voltage and overheating protection

Physical

Product dimensions: 35 x 35 x 45.1 CM
Net weight: 11.6KG
Flight case packaging 2 in 1: 68 x 41 x 59 CM
Gross weight: 38 KG

IP Rating

IP20

Discription

Introducing the WASH 500 BI, the big brother of our esteemed Wash 400 BI. Sharing the same powerful configuration of seven 40-watt LED lamps, this fixture is housed in a full-sized chassis specifically crafted for event rental companies.

Designed to meet the demands of professional lighting setups, the WASH 500 BI delivers exceptional performance and versatility. Whether illuminating large event spaces, outdoor venues, or concert stages, this fixture offers unparalleled brightness and coverage, ensuring every detail is brought to life with stunning clarity and precision.

With its robust construction and advanced features, including dual-functionality as both a beam and wash fixture, the WASH 500 BI is the perfect choice for event rental companies looking to elevate their lighting inventory. From corporate events to music festivals, this fixture delivers unmatched reliability and performance, setting the standard for excellence in event lighting.

Additional Information

LAMP SOURCE

Lamp type: 7pc 40W RGBW 4IN1 LED’s
Average life: 50000 hours
Lens: High quality optical lens
Beam angle: 4.5°- 45°

Color System

RGBW 4 in 1

Effects

All-optical domain dimming
High light output, low glare
Fast Strobe: 1-25HZ
Color macro and gradual color change effects.

Moving Parameter

Angle: Pan 540° Tilt 270° PAN and TILT adopt an electro-optic reset system which automatically resets the parameters if any change is caused by accident.

Power Supply

AC100-240V 50/60Hz Switch Power
Consumption: 350W

Electronic Control Technology

Fixture reset is controlled through menu or light console 0-100% dimmer Constant current drive mode Temperature sensor, intelligently adjust light source power DMX channel level monitoring Fixture information query Intelligent fan speed adjustment Initial brightness setting for all colors Over current, over voltage and overheating protection

Physical

Product dimensions: 35 x 35 x 45.1 CM
Net weight: 11.6KG
Flight case packaging 2 in 1: 68 x 41 x 59 CM
Gross weight: 38 KG

IP Rating

IP20
